Sure-Fi Wiegand Bridge Kit

$932.76

$839.48

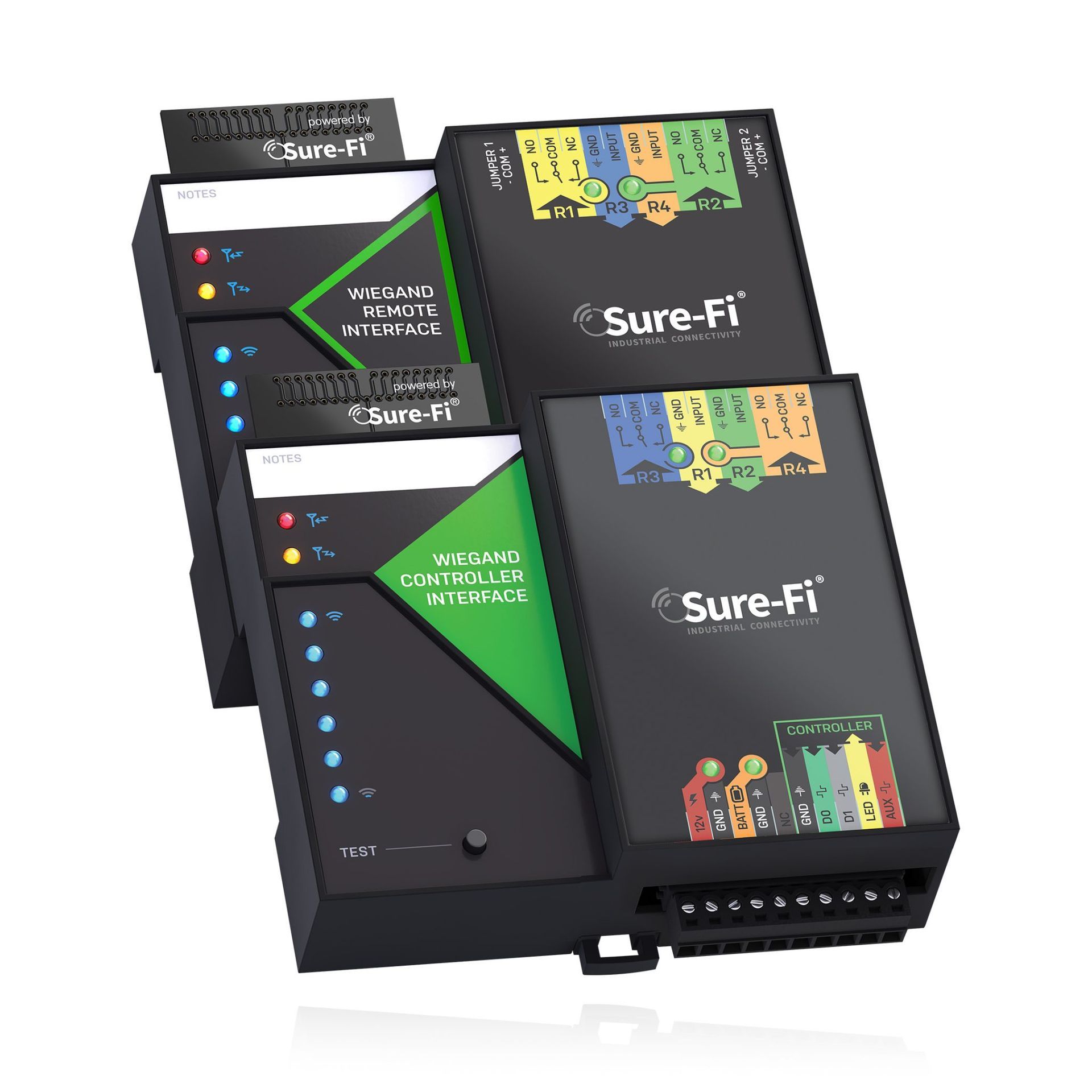

The Sure-Fi Bridge kit allows for wireless connection across Wiegand based access control systems. The Wireless Bridge consists of a transmitter and a receiver, eliminating the need for wiring between access control components. The transmitter attaches to the card reader, and the receiver attaches to the control panel. When credentials are presented, or a code is entered, the transmitter sends the information to the receiver, which sends the information to the control panel; the control panel then decides whether or not to grant access.

Add to Cart

  • SPECIFICATIONS

    Compatible with any Wiegand protocol up to 64-bits

    1 Wiegand input

    2 relay outputs, wet or dry (door strike, gate operator, mag lock, etc.)

    2 relay inputs (Request to Exit, door position sensor, etc.)

    12V 2.5A Output power supplies with 100/240/277 VAC input

    Operating voltage: 12VDC

    Operating current @12VDC: 0.05A (idle) 0.3A (transmitting)

    Operating power @12VDC: 3.6W (peak)

    Controller interface relays: 2 Form-C relays; 30VDC/VAC, 1A, 60W/125VA

    Remote Interface relays: 2 Form-C solid state relays; 30VDC/VAC, 1A, max combined current 2A, inductive

    Remote interface relays (wet): 10.42 - 12VDC special application, 1A Inductive (logic.

    Relays JP1/JP2 and VBUS: 2A combined)

  • HOW TO USE

    {{dynamic_page_collection.How to use}}

  • DETAILS

    72 channels for frequency hopping

    133dBm Receiver sensitivity with rolling encryption keys

    AES128 Encryption

    Frequency modulation CHIRP spread spectrum

    Frequency band (USA/CAN): 902.50-927.35MHz

    Up to 1-mile range with obstructions; up to 50-mile range with line-of-sight

    Operating temperature: -40 F to 185 F

    Comes with

    • One (1) Sure-Fi wireless bridge system
    • Two (2) 12V 2.5A Output power supplies with 100/240/277 VAC input
    • Two (2) 6-foot power cords
    • One (1) Sure-Fi screwdriver
