Sure-Fi Relay Kit

$741.26

$667.13

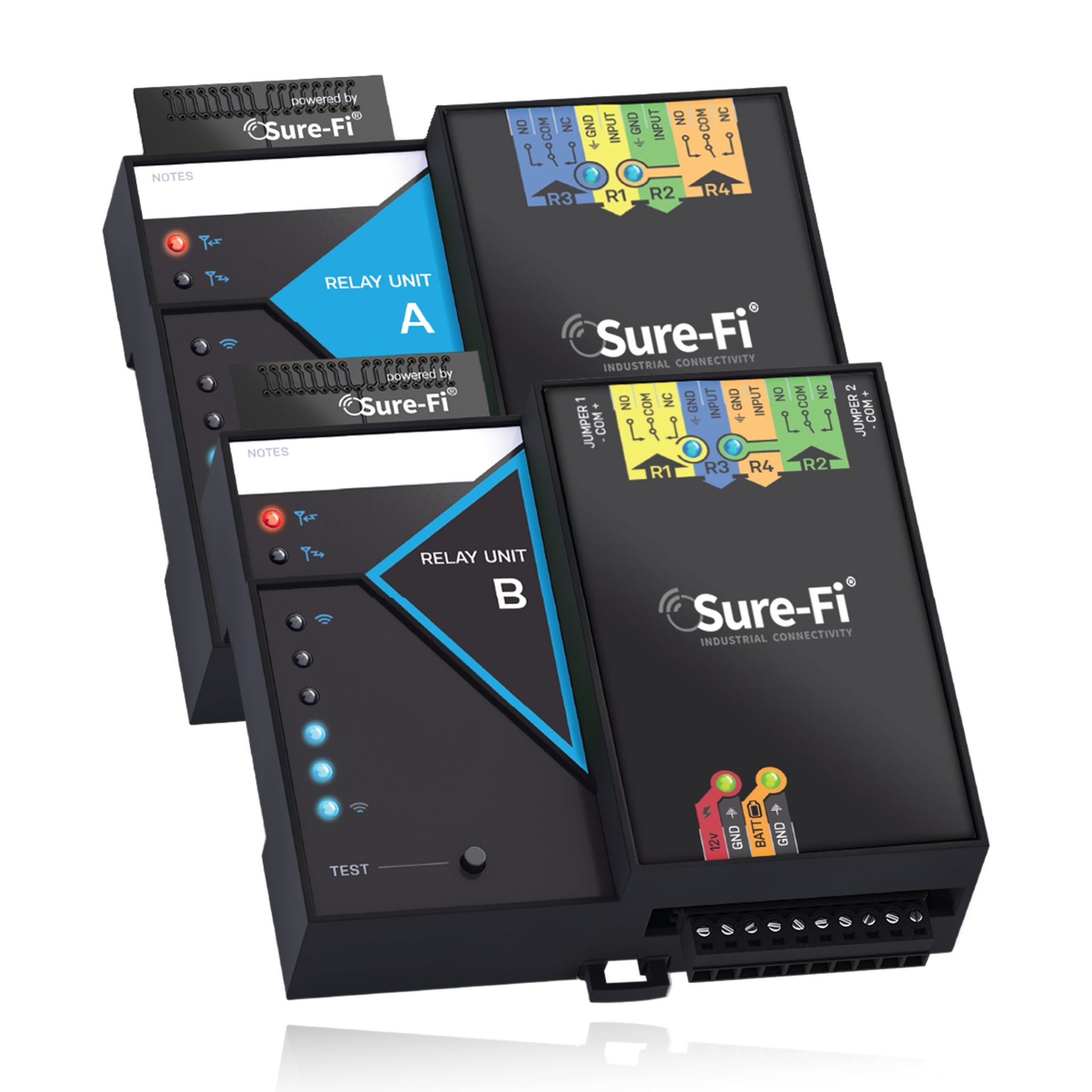

The Sure-Fi Relay kit is a bridge that enables wireless communication between devices that would normally communicate via wired connection using a relay. The wireless relay bridge comprises two Sure-Fi Units, A and B. In operation, when the first device sends a signal to engage the relay, the signal is received by the connected unit. The signal is then transmitted to the other Sure-Fi unit which engages its own relay, thus completing the action as if a direct wired connection existed between the two devices.


Kit comes with:

  •  1 - Sure-Fi Relay Wireless Bridge System, DS006-RELAY. Includes one Relay Unit A and one Relay Unit B
  • 2 - 12V 2.5A Output Power Supplies with 100-240, 277 VAC Input
  • 2 - 6 foot power cords
  • 1 - Sure-Fi Screwdriver


  • SPECIFICATIONS

    Operating Voltage 12VDC +/- %5

    Operating Current 0.08A (idle), 0.75A (transmit)

    Operating Power 9 Watt (peak)

    Transmit Power 1 Watt (30dBm)

    Frequency Band 902 - 928Mhz

    72 Channels (frequency hopping)

    Receiver Sensitivity - 133dBm

  • HOW TO USE

    {{dynamic_page_collection.How to use}}

  • DETAILS

    1-mile range through obstructions; 50-mile range by line-of-sight

    AES128 Encryption

    12V sealed lead acid battery backup

    Relays: 2A 250VAC / 2A 250VDC Wet or Dry: NO, NC, COM

    Operating temperature -40F to 185F
