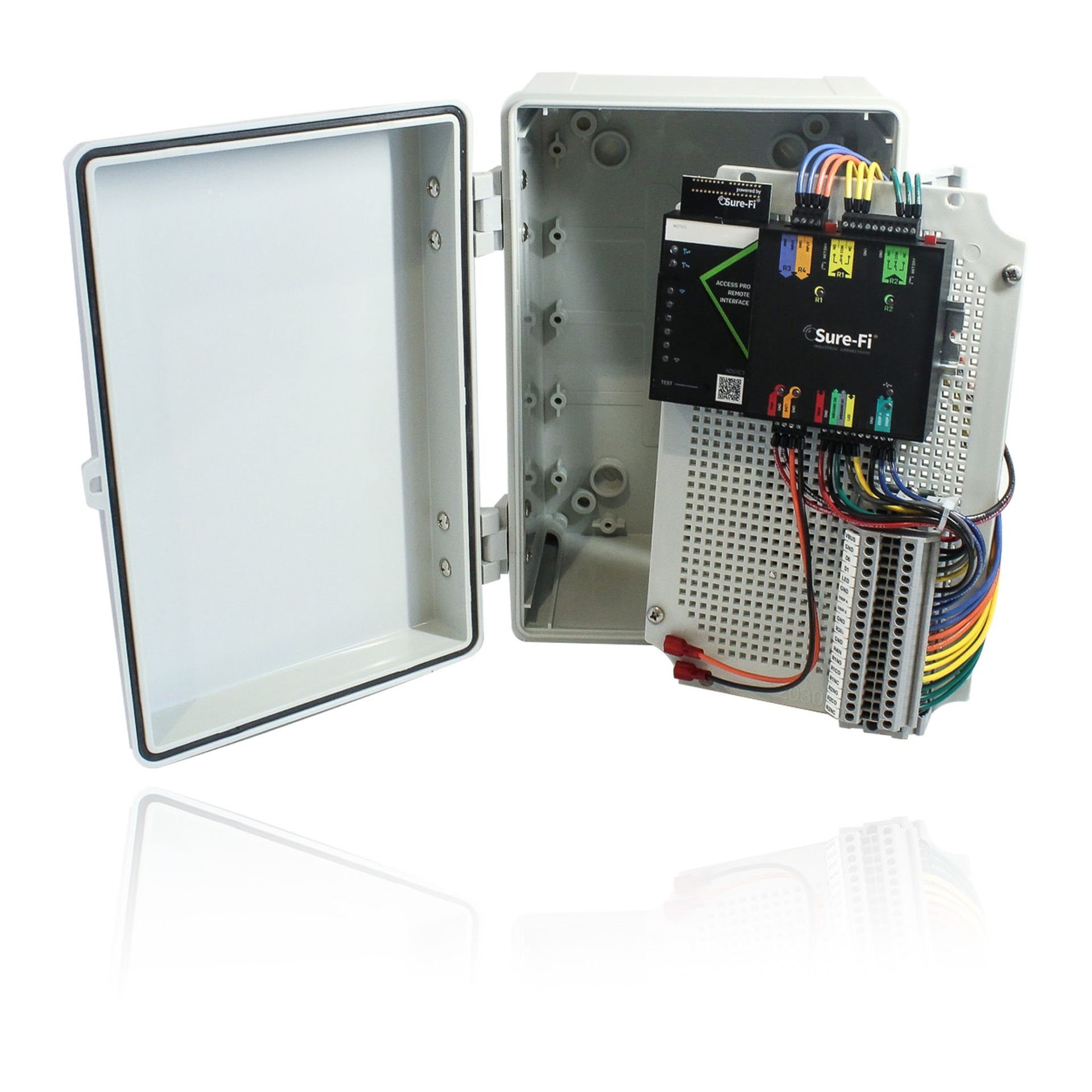

Sure-Fi Access Pro Compact Door Kit

$1,623.72

$1,461.35

The Sure-Fi Access Pro Compact kit is a wireless bridge designed for seamless, no-fuss integration into existing ODSP or high-bit Wiegand access control systems. Compatibility with 12VDC battery chargers ensures your system will continue to function, even in the event of power loss. Pre-wired and compact, the Access Pro Compact kit is easy to install without being a bulky obstruction. Perfect for temporary structures, and can be charged over night for all day use.

  • SPECIFICATIONS

    Operating Voltage: 12VDC (9VDC tp 15VDC)

    Operating Current (@12VDC): 0.08A (idle), 0.3A (transmit)

    Operating Power (@12VDC): 3.6 Watt (peak)

    Transmit Power: 1 Watt (30dBm)

    Frequency Band: 902 - 928MHz

    72 channels (Frequency Hopping)

    Receiver Sensitivity: 133dBm

  • HOW TO USE

    {{dynamic_page_collection.How to use}}

  • DETAILS

    1-mile range through obstructions, 50-mile range by line of sight

    12V sealed lead acid battery backup

    AES128 Encryption

    Relays: 2A 250VAC / 2A 250VDC wet or dry NO, NC, COM (x2)

    Operating temperature -40F to 185F

    Kit includes

    • Includes one Sure-Fi DS011 Access Pro system per kit
    • 12Vdc 5.0A power supply
    • UL-50 / cUL Listed enclosure
    • 12Vdc battery charger/UPS
