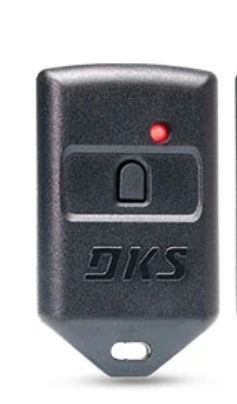

DKS 8069-088 - MicroPLUS Transmitter w/DKProxPLUS Tag
$58.20
$40.74
The 8069-088 model is a single-button transmitter. This remote control is fitted with a ProxPLUS tag, so it doubles as a credential for prox readers.
Sold only in groups of 10.
PROXMTR: DK ProxPlus, DK Prox, AWID or HID proximity tags – specify which.
SPECIFICATIONS
Provides remote operation of vehicular access gates from the safety and convenience of a vehicle
MICROPLUS® transmitter codes cannot be copied assuring that only the original intended transmitters will activate the access control system
Over 286,000,000 transmitter codes available plus an encrypted “sync” code that changes every time the transmitter is used
PROXMTR® includes a built in proximity card with the MICROPLUS transmitter combining both RF and card access control into a single compact unit
Transmitters available with 1, 2, 3 or 4 buttons
MICROPLUS RF controls may be used as a stand-alone access control system or can be interfaced with 26, 30 or 31-bit wiegand controllers
HOW TO USE
{{dynamic_page_collection.How to use}}
DETAILS
8040 Receiver:
- Primarily used as a 26, 30, or 31-bit wiegand output receiver
- Can be set for stand-alone operation, 100 codes maximum
- Low power mode for solar-powered operation
- Can be used with MicroClik or MicroPlus transmitters
- Form C relay.
- 12-24 volt AC or DC.
8054 Receiver:
- Stand-alone receiver.
- Built-in programming keypad
- Stores up to 1250 transmitter codes
- 2300 event transaction buffer.
- Output for serial printer.
- 10 programmable time zones.
- Built-in clock / calendar.
- Form C dry contact relay.
- 12-24 volt, AC or DC.
