DKS 6006 Swing Gate Actuator and Control Box

$3,458.00

$2,163.60

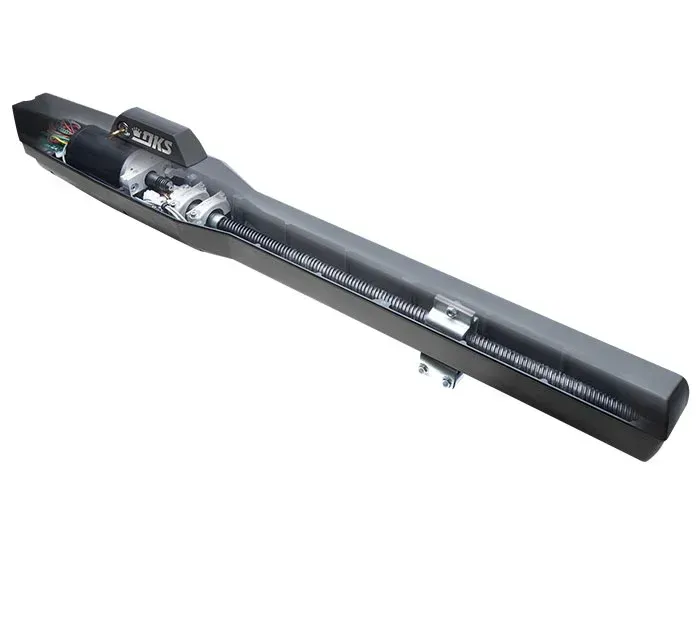

The DKS 6006 Swing Gate Operator is compact, reliable, and low profile. It mounts directly to the gate and hinge post, eliminating the need for concrete pad mounts. It runs on 24VDC power, with built-in limit switches to control the travel speed of the gate. The control box can be run on 120VAC, and comes with battery backup in the event of power loss.

Control box is the Standard Control Box offered by DKS. It includes a built-in battery charger and a magnetic lock power circuit.

Add to Cart

  • SPECIFICATIONS

    Class I and II applications.

    Actuator arm and control box for swing gate.

    24V DC power.

    Built-in no-contact magnetic limit switches.

    3.5Ah batteries for back-up power. Solar adaptable.

    Left- or right-hand mounting.

    Opens to 90 ° in 18-20 seconds.

    Control box rated NEMA 4X weather protection.

    Built-in battery charger; high current warning; reset and test buttons.

    Keyed release for manual operation in the event of power loss or battery depletion.


    NB: To be UL325 compliant, further safety accessories are required. DKS 6006 does NOT come with external entrapment protection. ACTUATOR WILL NOT RUN WITHOUT ENTRAPMENT PROTECTION DEVICES CONNECTED TO THE CONTROL BOARD.

  • HOW TO USE

    {{dynamic_page_collection.How to use}}

  • DETAILS

    Control box:

    • Converts 115 VAC to 24 VDC operating voltage
    • Built-in battery charger
    • Magnetic lock power circuit
    • Includes two (2) 3.5 Ah back-up batteries (100 cycles*), 8040 receiver and the 8080-057 photo-eye
