D&D CI3975 Uphill Strap Hinge Set

$298.35

$268.51

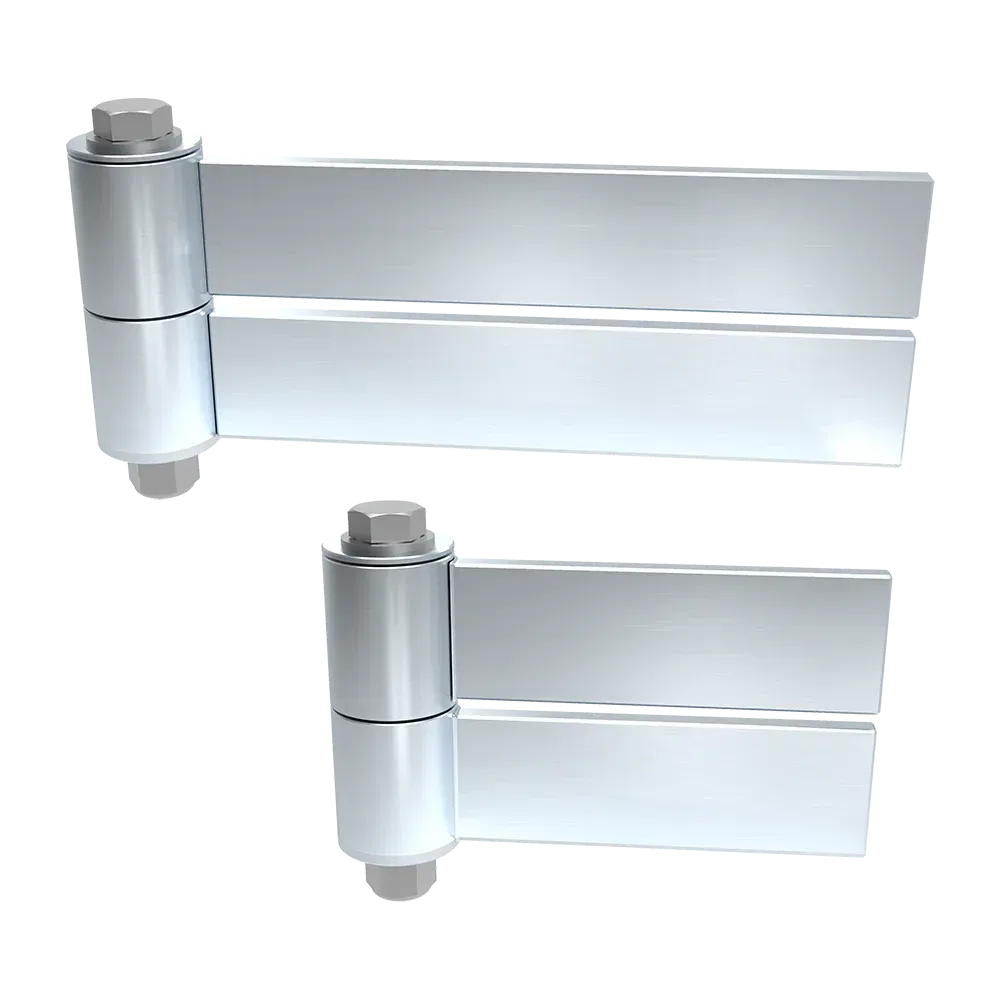

These uphill hinges are sold as a set. The BadAss Strap Hinge, is a barrel hinge that includes a 6" or 10” strap for convenient and flexible gate installations. The strap hinge is also one of SHUT IT’s strongest gate hinges with more bearing load than any hinge on the market. By combining different lengths top and bottom it is the ideal solution for opening gate on an uphill gradient.

Add to Cart

  • SPECIFICATIONS

    Gate Type: Non Self-Closing

    Gate Material: Steel/Ornamental Iron

    Approx. Gate Size: 6' W x 8' H

    Gate Frame/Post Shape: Square-to-Square

    Min. Post Size: 1½"+

    Ideal Gate Gap: Fixed at ½"

    Fixing Method: Weld-On

    Color/Finish: Zinc

  • HOW TO USE

    {{dynamic_page_collection.How to use}}

  • DETAILS

    Safe to powder coat with hinges installed on gate

    No greasing, no maintenance

    Horizontal adjustability for perfect installations

    Suitable for motorized, uphill or heavy gates

    For square-posted, weld-on installations

    Zinc electroplated external components

    Swings 180º, fixed gap variance 1/2"

    Leaf straps can be cut to length

    Load rating per gate: 3,000 lbs.

    Maximum gate weight: 1,500 lbs.
