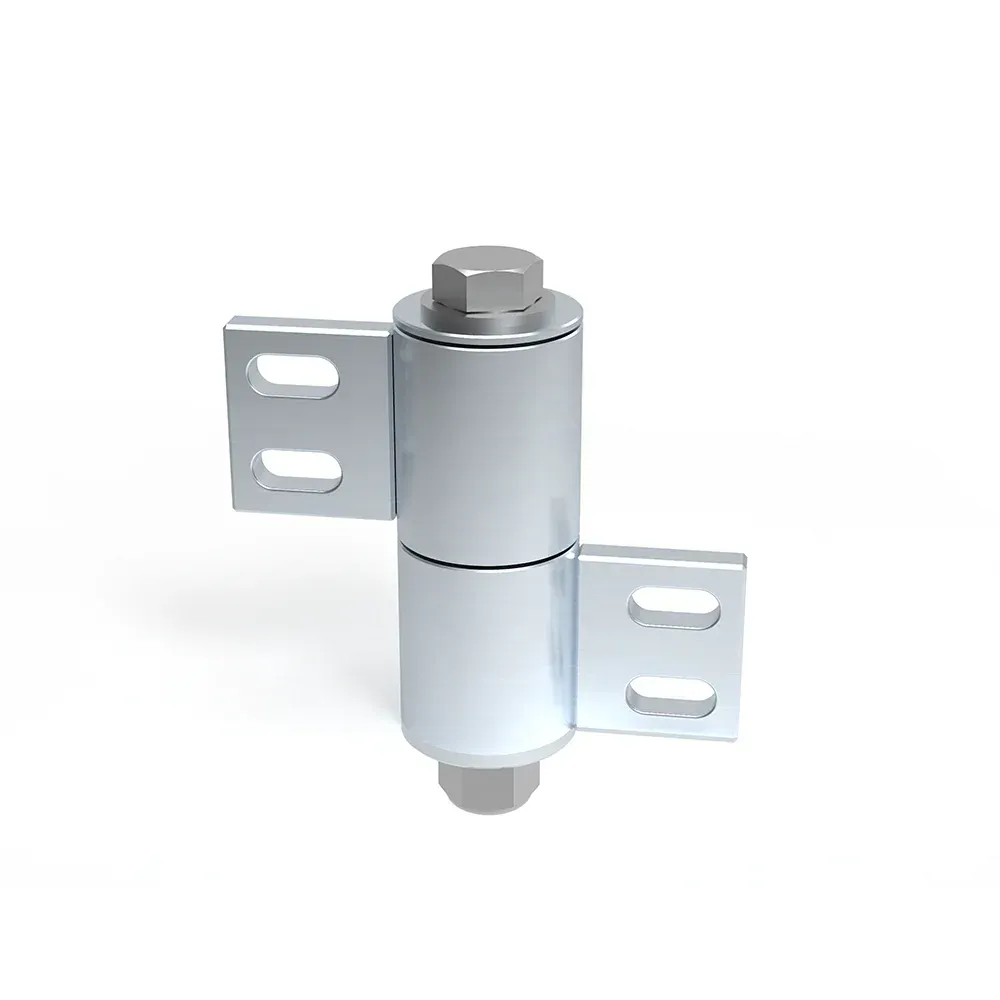

D&D CI3950 Barrel Hinge

$131.03

$117.93

D&D's Barrel Hinge is one of the strongest and most versatile gate hinges on the market. An ideal solution for a wide variety of heavy duty gate installations, this barrel hinge can be installed in applications requiring a full 180º gate opening.


Add to Cart

  • SPECIFICATIONS

    • High-temperature sealed bearings – safe to powder coat with hinges installed on gate

    • No greasing or maintenance required on sealed bearings.

    • Horizontal adjustability for perfect installations

    • The strongest and most versatile hinge on the market

    • Ideal for nearly all flat post installations

    • Bolt-on and weld-on installations

    • Swings 180º if required

    • Load rating per gate: 3,000lbs.

    • Maximum gate weight: 1,500lbs.

  • HOW TO USE

    {{dynamic_page_collection.How to use}}

  • DETAILS

    Gate Type: Non Self-Closing

    Gate Material: Steel/Ornamental Iron

    Approx. Gate Size: 8'W x 6'H

    Gate Frame/Post Shape: Square-to-Square

    Min. Post Size: 1½"+

    Ideal Gate Gap: Fixed at ½"

    Fixing Method: Bolt-On/Weld-On

    Color/Finish: Zinc
