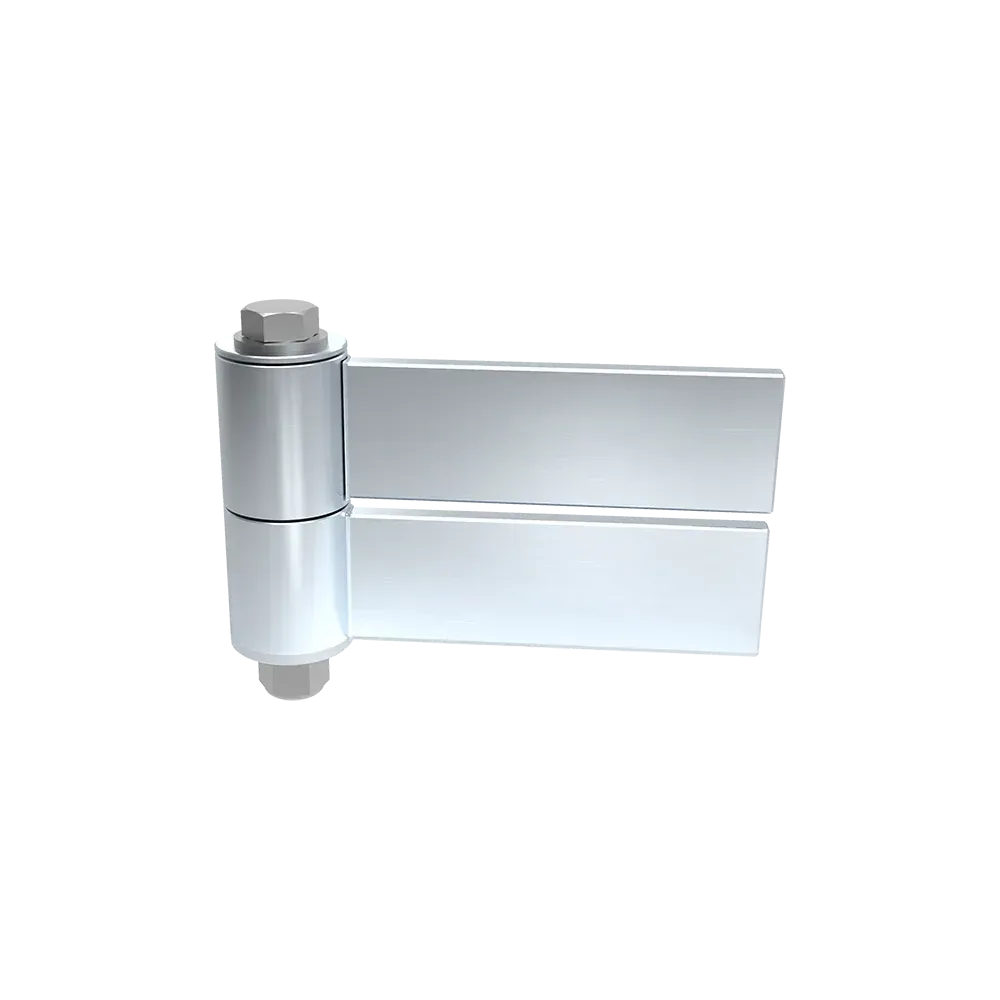

D&D CI3900 6" Strap Hinge

$139.10

$125.19

One of D&D's newest gate hinges on the market. The BadAss Strap Hinge is a barrel hinge that includes a 6" strap for flexible gate installations. The strap hinge is also one of D&D's strongest hinges with a greater capacity for loadbearing than practically any other hinge on the market. If different lengths are combined for top and bottom, the Strap Hinge is an ideal solution for for opening gates on an incline.


Add to Cart

  • SPECIFICATIONS

    High-temperature sealed bearings – safe to powder coat with hinges installed on gate

    No greasing or maintenance required on sealed bearings.

    Horizontal adjustability for perfect installations

    Suitable for motorised, uphill or heavy gates

    For square-posted, weld-on installations

    Zinc electroplated external components

    Swings 180º, fixed gap variance 1/2"

    Leaf straps can be cut to length

    Load rating per gate: 3,000lbs.

    Maximum gate weight: 1,500lbs.

    Hinge weight: 6lbs.

  • HOW TO USE

    {{dynamic_page_collection.How to use}}

  • DETAILS

    Gate Application:

    • Driveway Gate - Double
    • Driveway Gate - Single
    • Public/Commercial Gate
    • Automated/Electric Gate
    • Security Gate
    • Privacy Gate

    Gate Type: Non Self-Closing

    Gate Material: Steel/Ornamental Iron

    Approx. Gate Size: 6'W x 8'H

    Gate Frame/Post Shape: Square-to-Square

    Min Post Size1½"+

    Ideal Gate Gap: Fixed at ½"

    Fixing Method: Weld-On

    Color/Finish: Zinc
