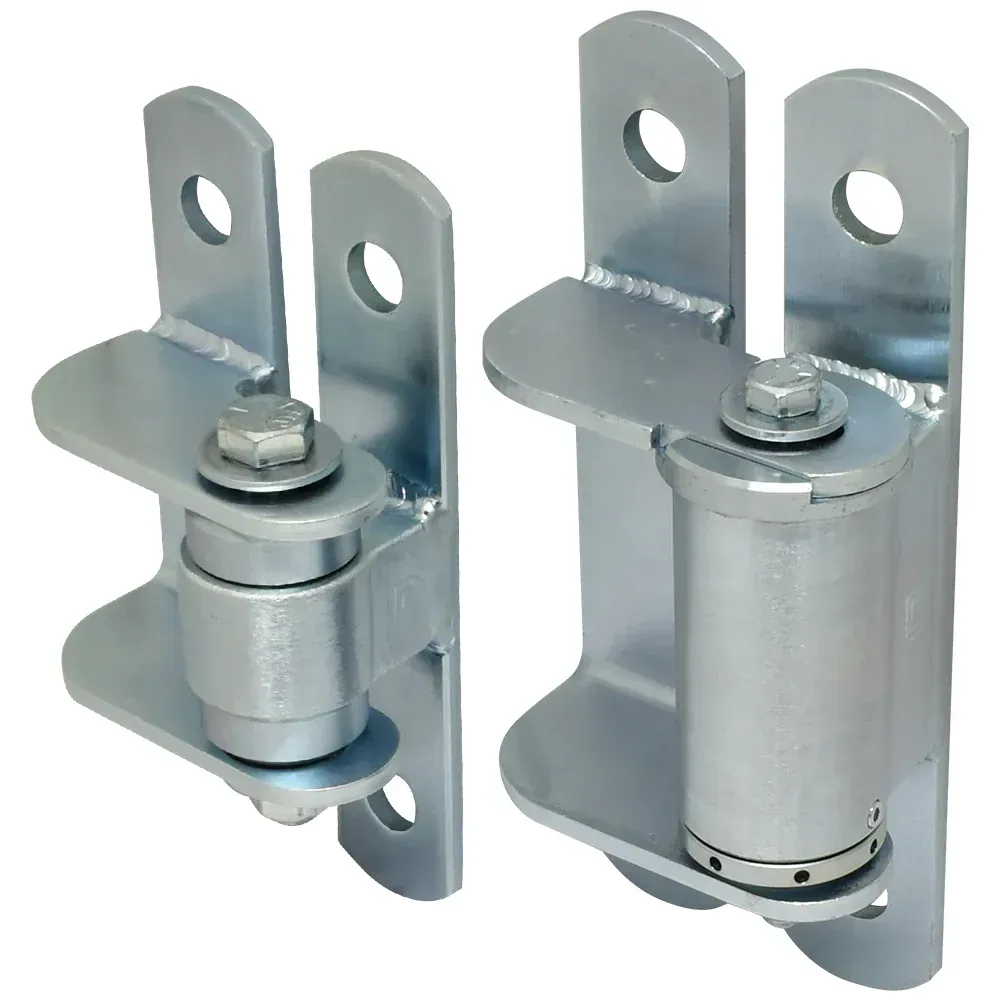

D&D CI3860FM Face-Mount Bolt-On Self-Closing Hinge Set

$341.14

$307.02

These face-mount bolt-on hinges are sold as a set. These bolt-on BadAss hinges were designed to be used in applications where welding is not a feasible option. These hinges are easy to install and adjust, and the bearings are sealed to eliminate the need for greasing. CNC machined to the tightest tolerances in the industry, these hinges are compatible for use on aluminum gates, and other non-weldable, or high-traffic gates.

Add to Cart

  • SPECIFICATIONS

    Gate Type: Self-Closing

    Gate Material: Steel/Ornamental Iron, Aluminum

    Approx. Gate Size: 6' W x 8' H

    Gate Frame/Post Shape: Square-to-Square

    Min. Post Size: 1½"+

    Ideal Gate Gap: 2.9"-3.4"

    Fixing Method: Bolt-On

    Color/Finish: Zinc

    Unit Weight: 6 lbs. per set

  • HOW TO USE

    {{dynamic_page_collection.How to use}}

  • DETAILS

    Heavy duty, bolt-on, self-closing gate hinge that is easy to install

    CNC machined to perfection for near frictionless movement

    Quiet and smooth operation

    Reduced wear on automatic gate systems

    Horizontally adjustable for precise installations

    No greasing or maintenance required on sealed bearings

    Ideal for panic-bar installations

    Self-closing maximum gate weight: 300 lbs.

    5 tension-adjustment settings

    Tested to over 1 Million Open/Close cycles

    Limited Lifetime Warranty

    ADA suitable
