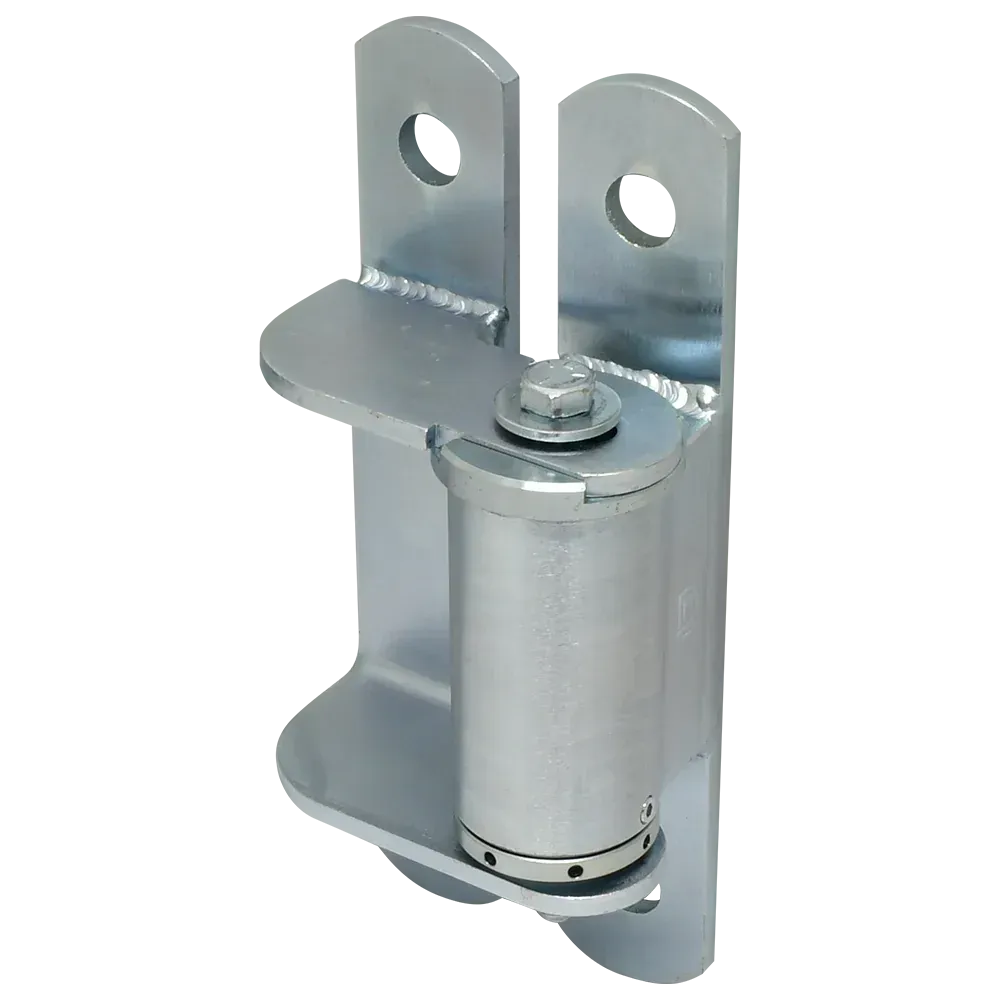

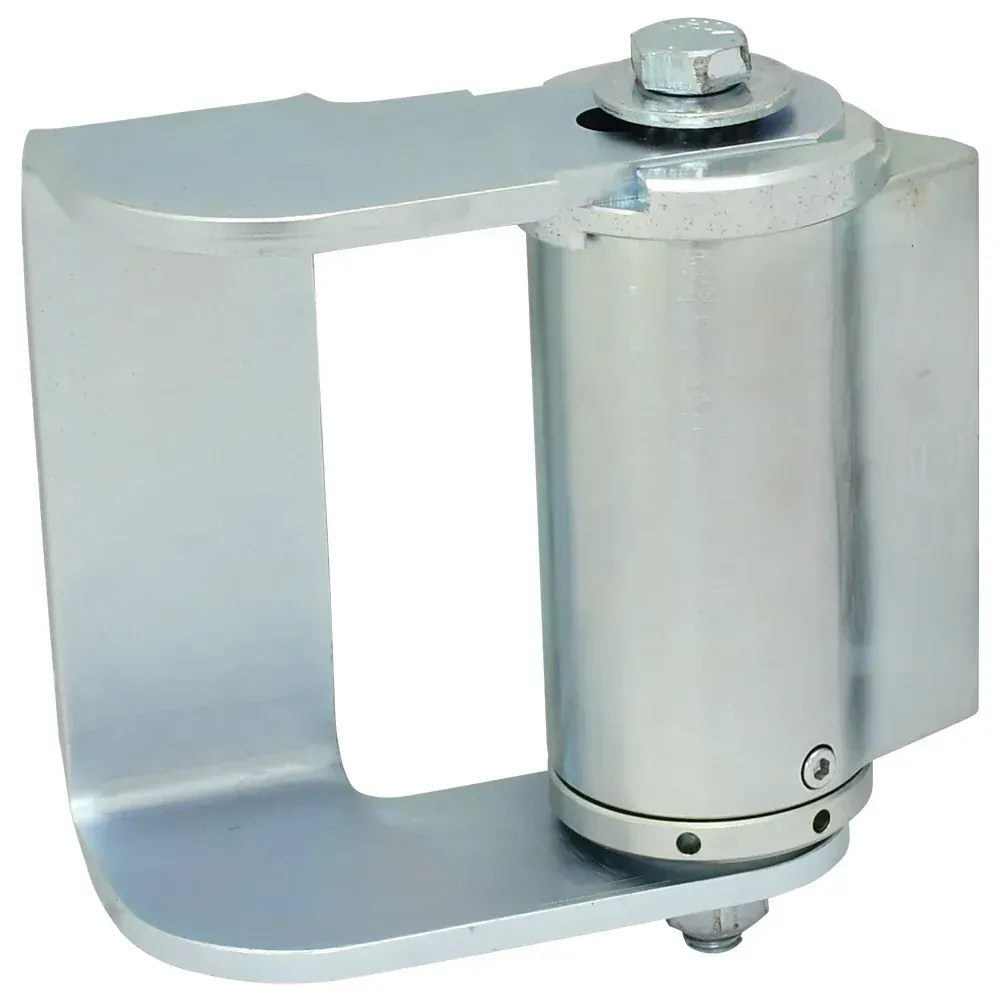

D&D CI3825FM Face-Mount Self-Closing Gate Hinges

$213.21

$191.89

This D&D self-closing hinge is perfect for applications where a closer is necessary, and welding is impractical. These bolt-on self-closing hinges are face-mounted, and open 180º for optimal use.

Add to Cart

  • SPECIFICATIONS

    Gate Application:

    • Pedestrian Gates
    • Driveway Gates
    • Pet Gates
    • Playground Gates
    • Public/Commercial Gates
    • Automated/Electric Gates
    • Security Gates
    • Privacy Gates

    Gate Type: Self-Closing

    Gate Material: Steel/Ornamental Iron

    Approx. Gate Size: 6ft W x 8ft H

    Gate Frame/Post Shape: Square-to-Square, Square-to-Round

    Min. Post Size: 1½"+

    Ideal Gate Gap½"- 1"

    Color/Finish: Zinc

    Unit Weight: 3lbs.

  • HOW TO USE

    {{dynamic_page_collection.How to use}}

  • DETAILS

    Opens to 180° for unobstructed pass through

    Achieve gate gaps as small as 1⁄2“ (13mm)

    Horizontally adjustable 1⁄2“ to 1” for precise installation

    Both weld-on and bolt-on models available

    No greasing or maintenance required on sealed bearings. EVER!

    Horizontal adjustability is ideal for panic bar installations

    Self-closing maximum gate weight: 440 lb (with 2 closers) CI3835FM or CI3825FM

    Self-closing maximum gate weight: 300 lb (with a closer and plain hinge set)

    5 tension-adjustment settings

    ADA suitable
