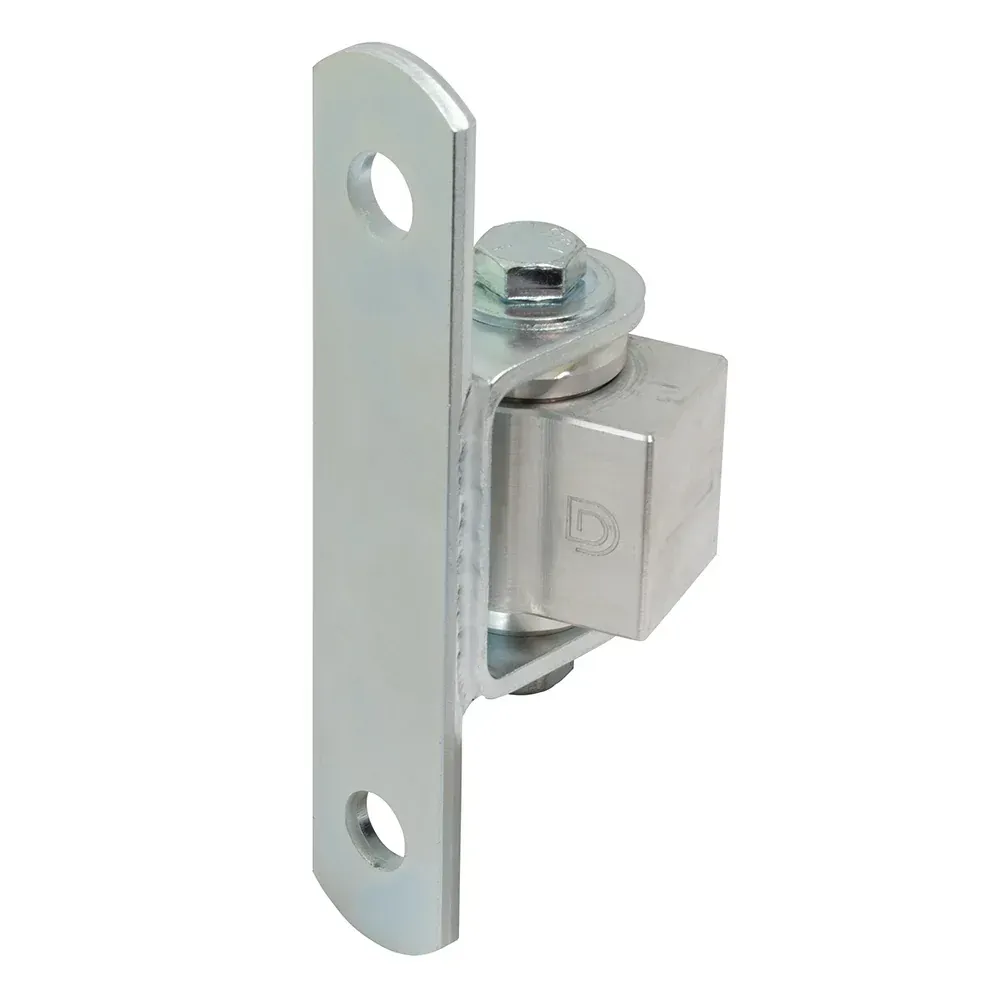

D&D CI3780 Aluminum Body Half Bolt-On Hinges

$104.82

$94.33

These Bolt-On gate hinges by D&D are machined to the tightest tolerances in the hardware industry. This version of the Bolt-On BadAss hinges was designed to be used in applications where welding hinges to a post is not an option. The near-frictionless movement of the sealed bearings reduces and practically eliminates all need for maintenance. For this particular half bolt-on, the yoke material is steel, and the body material is aluminum.


Add to Cart

  • SPECIFICATIONS

    High-temperature sealed bearings – safe to powder coat with hinges installed on gate

    Yoke material is steel, the body material is aluminum

    No greasing or maintenance required on sealed bearings

    Horizontal adjustability for perfect installations

    Flat, bolt-on bracket for through bolting

    Zinc plated

    Load rating per gate: 2,000lbs.

    Maximum gate weight: 600lbs.

    Unit weight: 2.5lbs.

  • HOW TO USE

    {{dynamic_page_collection.How to use}}

  • DETAILS

    Gate Application: Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate

    Gate Type: Non Self-Closing

    Gate Material: Steel/Ornamental Iron

    Approx. Gate Size: 6'W x 8'H

    Gate Frame/Post Shape: Square-to-Square, Square-to-Round

    Min Post Size: 1½"+

    Ideal Gate Gap: 2½ - 3"

    Fixing Method: Bolt-On, Weld-On

    Color/Finish: Zinc
