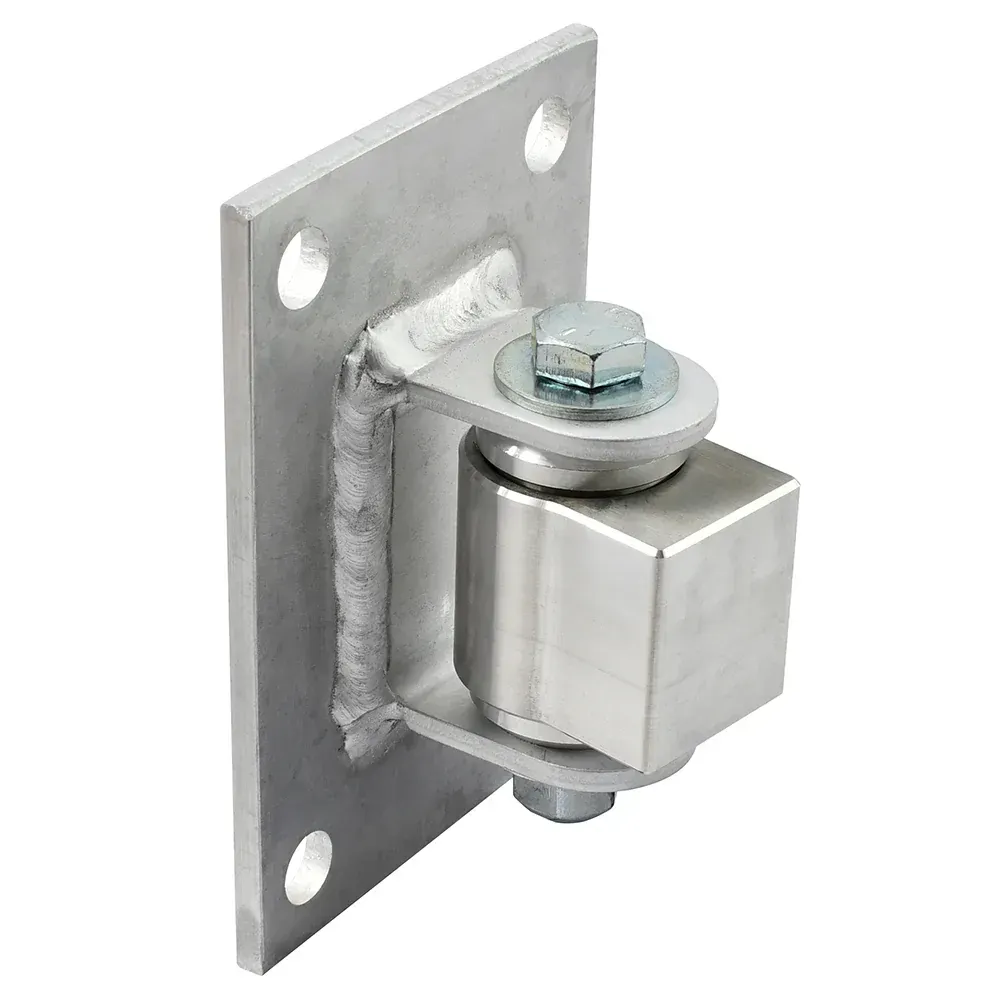

D&D CI3740A Aluminum Half Bolt-On BadAss Hinge
$128.81
$115.93
This all aluminum hinge is meant for hinge posts 4" or wider. The wide mounting plates ensure an even distribution of weight to reduce post flexing or other failure. The four anchor points position bolts at the sides for a more secure attachment. SHUT IT hinges are assembled in the U.S. with D&D's standard maintenance-free high-temperature sealed bearings. Sealed bearings mean the hinge has nearly frictionless movement, and can be powder coated with the gate.
SPECIFICATIONS
Gate Type: Non Self-Closing
Gate Material: Aluminum
Approx. Gate Size: 6'W x 8'H
Gate Frame/Post Shape: Square-to-Square, Square-to-Round
Min. Post Size: 1½"+
Ideal Gate Gap: 3 ¼" - 3 ¾"
Fixing Method: Bolt-On, Weld-On
Color/Finish: Zinc
Unit Weight: 1.5 lbs. per hinge
HOW TO USE
{{dynamic_page_collection.How to use}}
DETAILS
Made to bolt or weld to 4” or 5” fence posts
Wider brackets enable anchor points to be positioned at the sides, rather than center of fence post - reducing flexing, preventing fatigue in fence post
High-temperature sealed bearings - safe to powder coat with hinges installed on gate
No greasing or maintenance required on sealed bearings.
Precision bushing - distributes gate load for optimal performance and longer life
CNC machined to perfection and near frictionless movement
Max Gate Load: 1,000lbs.
Max Gate Weight: 600lbs.
Limited Lifetime Warranty
