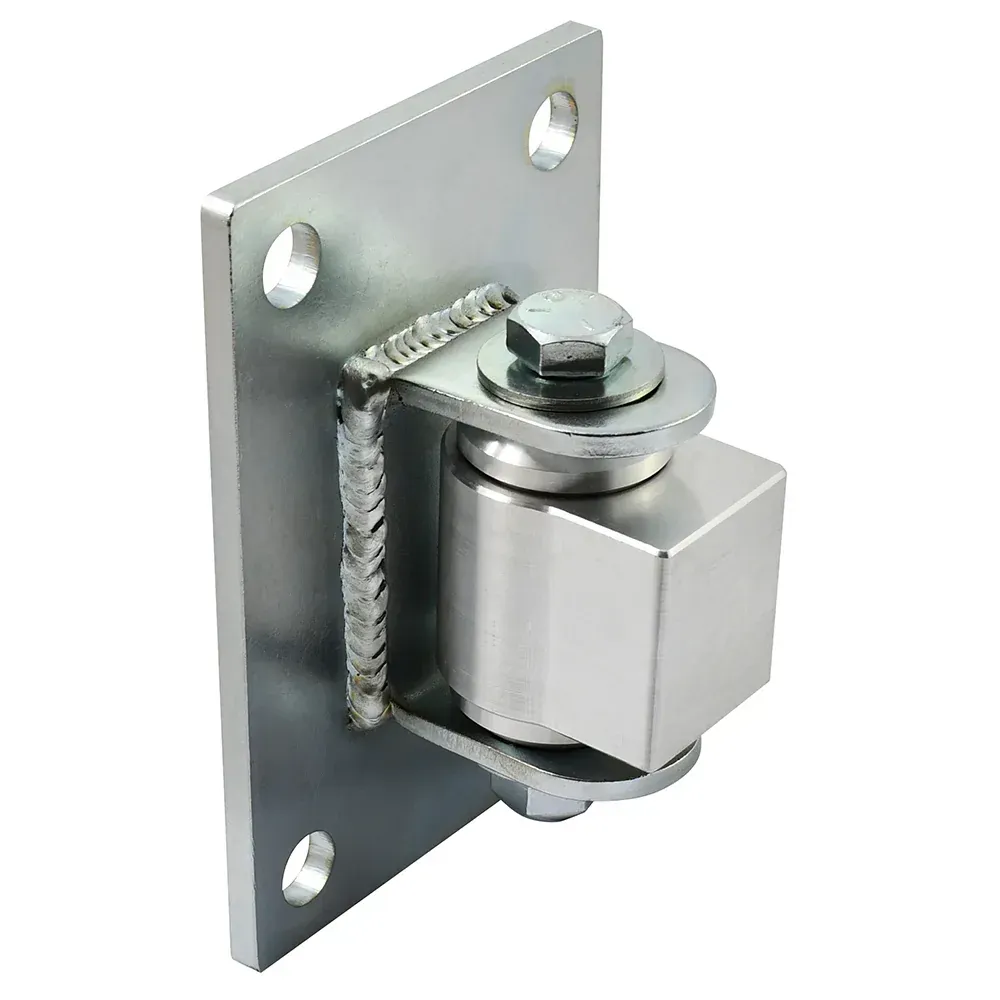

D&D CI3740 Steel/Aluminum Combo Half Bolt-On BadAss Hinge

$128.81

$115.93

This combination steel/aluminum hinge is meant for hinge posts 4" or wider. The wide mounting plates ensure an even distribution of weight to reduce post flexing or other failure. The four anchor points position bolts at the sides for a more secure attachment. SHUT IT hinges are assembled in the U.S. with D&D's standard maintenance-free high-temperature sealed bearings. Sealed bearings mean the hinge has nearly frictionless movement, and can be powder coated with the gate.


Add to Cart

  • SPECIFICATIONS

    Gate Type: Non Self-Closing

    Gate Material: Aluminum

    Approx. Gate Size: 6'W x 8'H

    Gate Frame/Post Shape: Square-to-Square, Square-to-Round

    Min. Post Size: 1½"+

    Ideal Gate Gap: 3 ¼" - 3 ¾"

    Fixing Method: Bolt-On, Weld-On

    Color/Finish: Zinc

    Unit Weight: 3lbs. per hinge

  • HOW TO USE

    {{dynamic_page_collection.How to use}}

  • DETAILS

    • Made to bolt or weld to 4” or 5” fence posts

    • Wider brackets enable anchor points to be positioned at the sides, rather than center of fence post - reducing flexing, preventing fatigue in fence post

    • High-temperature sealed bearings - safe to powder coat with hinges installed on gate

    • No greasing or maintenance required on sealed bearings.

    • Precision bushing - distributes gate load for optimal performance and longer life

    • CNC machined to perfection and near frictionless movement

    • Max Gate Load: 1,000lbs.

    • Max Gate Weight: 600lbs.

    • Limited Lifetime Warranty
