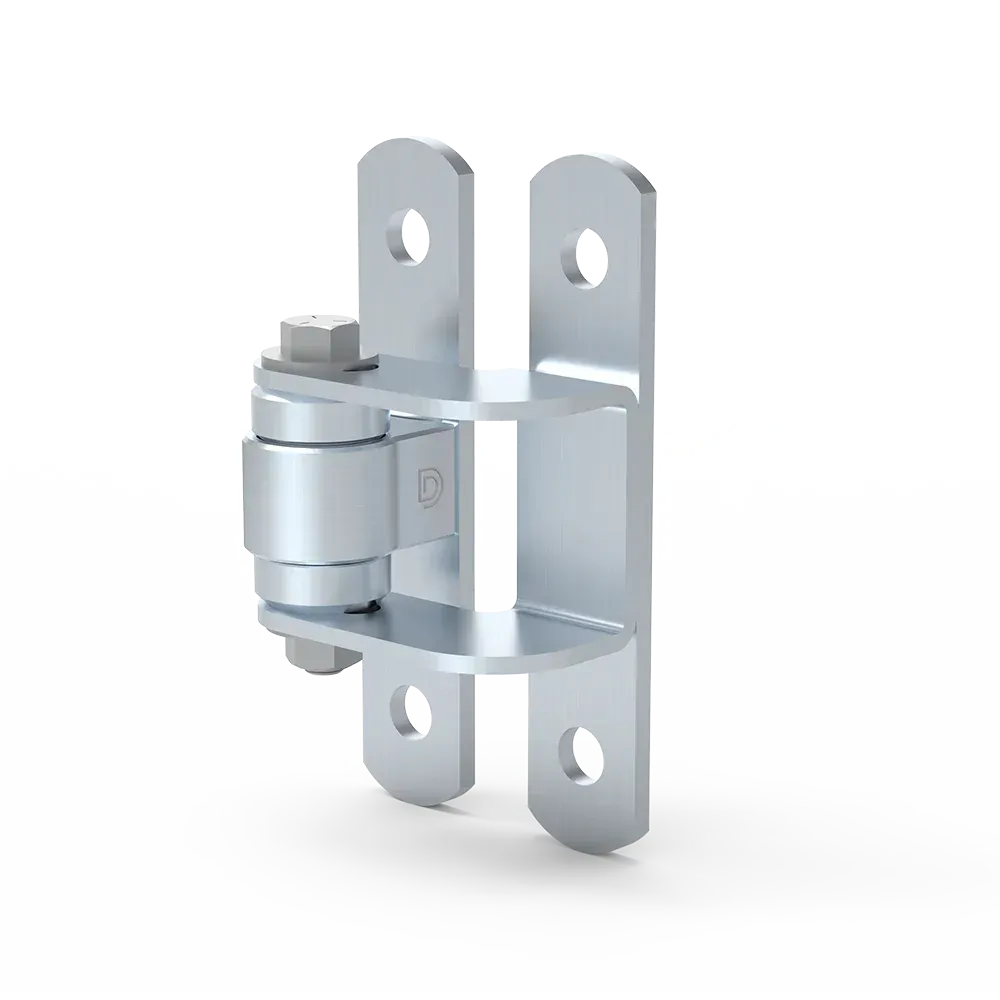

D&D CI3720 Face Mount Bolt-On BadAss Hinges

$124.98

$112.48

The CI3720 face mount bolt-on hinge is, like all SHUT IT hinges, CNC machined to the tightest tolerances possible in the industry. The sealed bearings reduce required maintenance to almost zero and provide nearly frictionless movement. The CI3720 is perfect for those installations where welding a hinge to a gate post is not possible. It has a load rating of 2,000lbs., and is rated for gates up to 1,100lbs.

Add to Cart

  • SPECIFICATIONS

    Gate Type: Non Self-Closing

    Gate Material: Steel/Ornamental Iron

    Approx. Gate Size: 6'W x 8'H

    Gate Frame/Post Shape: Square-to-Square, Square-to-Round

    Min. Post Size: 1½"+

    Ideal Gate Gap: ½"- 1"

    Color/Finish: Zinc

    Unit Weight: 2.5lbs. per hinge

  • HOW TO USE

    {{dynamic_page_collection.How to use}}

  • DETAILS

    Opens to 180° for unobstructed pass through

    Achieve gate gaps as small as 1/2"

    Horizontally adjustable to 1/2" for perfect installations

    Both weld-on and bolt-on models available

    High-temp sealed bearings, safe to powder-coat after installation on gate

    No greasing or maintenance required on sealed bearings

    Load rating per gate: 2,000lbs.

    Maximum gate weight: 1,100lbs.
