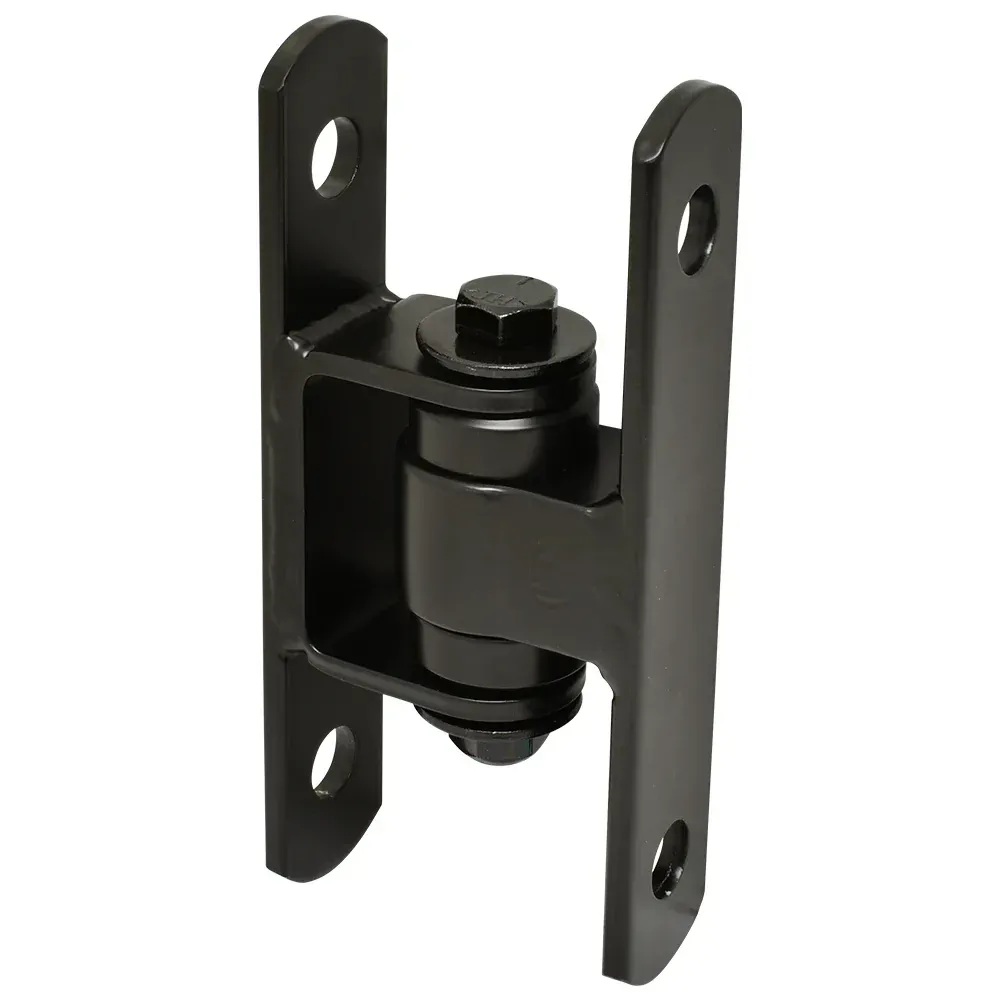

D&D CI3700B BadAss Powder Coated Bolt-On Hinge

$133.26

$119.93

The Bolt-On BadAss hinge was designed for those projects and applications where a hinge with the reliability of a BadAss is required, but welding is not possible or practical. As with all BadAss hinges, this one was designed to be maintenance free. The CI3700B comes powder coated black, with nuts and bolts black zinc-plated for color match. Major components have been individually coated for total coverage. CNC machined to the tightest available tolerances in the industry, the CI3700B is designed to be as low maintenance as possible.



Add to Cart

  • SPECIFICATIONS

    Gate Type: Non Self-Closing

    Gate Material: Steel/Ornamental Iron/Aluminum

    Approx. Gate Size: 6'W x 8'H

    Gate Frame/Post Shape: Square-to-Square

    Min. Post Size: 1½"+

    Ideal Gate Gap: 2.9-3.4"

    Fixing Method: Bolt-On

    Color/Finish: Zinc

    Unit Weight: 3.5lbs. per hinge

  • HOW TO USE

    {{dynamic_page_collection.How to use}}

  • DETAILS

    • No greasing or maintenance is required on sealed bearings

    • Horizontally adjustable for perfect installations

    • Durable – Tested to over 1 Million open/close cycles

    • Highest gate weight rating in the industry

    • Ideal for both aluminum and steel gates

    • Load rating per gate: 2,000lbs.

    • Maximum gate weight: 1,000lbs.
