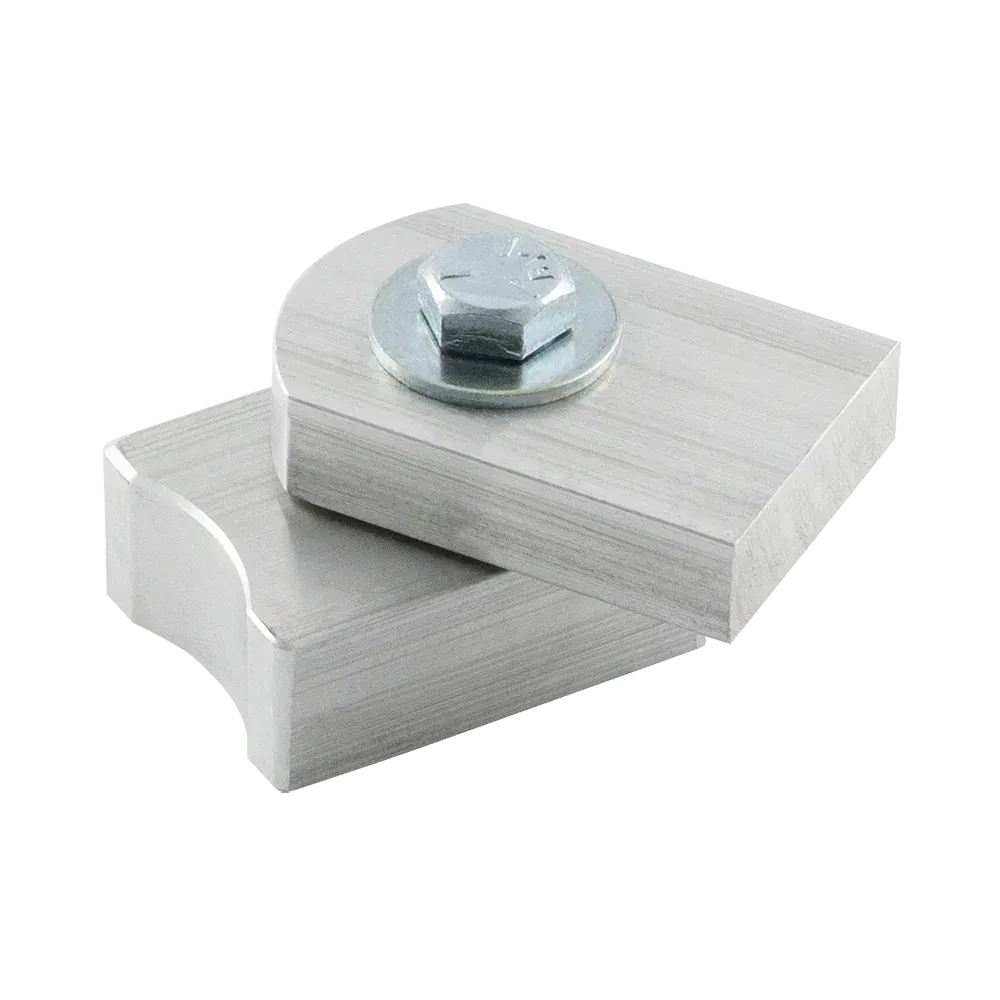

D&D CI3650 Aluminum Baby BadAss Hinge

$46.41

$41.77

Designed with the same purpose and intention as the Original BadAss hinge, the Baby BadAss is meant for those lighter projects that still need reliability. Meant for pedestrian gates and limited-use driveway gates, it has a loadbearing capacity of up to 300lbs. The CI3650 is the aluminum version of the CI3600.

Add to Cart

  • SPECIFICATIONS

    Gate Type: Non Self-Closing

    Gate Material: Aluminum, Steel/Ornamental Iron

    Approx. Gate Size: 6'W x 8'H

    Gate Frame/Post Shape: Square-to-Square, Square-to-Round

    Min. Post Size: 1½"+

    Ideal Gate Gap: 2½ - 3"

    Fixing Method: Weld-On

    Colour/Finish: Raw, Zinc, Rusted

    Unit Weight: 1lb. per hinge

  • HOW TO USE

    {{dynamic_page_collection.How to use}}

  • DETAILS

    High-temperature sealed bearings – safe to powder coat with hinges installed on gate

    No greasing or maintenance required on sealed bearings.

    Horizontal adjustability for perfect installations

    Up to ½" (13mm) of horizontal adjustment

    Ideal for square or round post installations

    Load rating per gate: 500lbs.

    Maximum gate weight: 300lbs.
