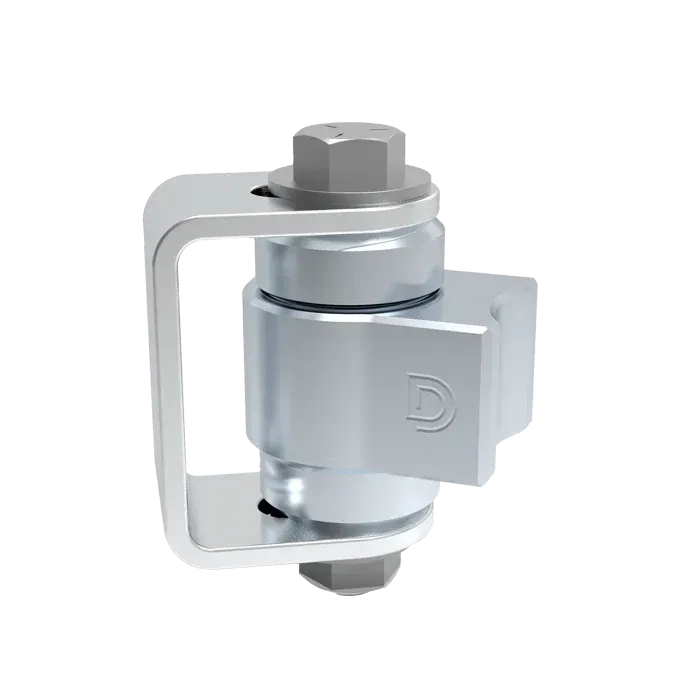

D&D CI3300 Steel/Aluminum Combo BadAss Hinge

$78.61

$70.75

The D&D Combo BadAss hinge is designed in much the same way as all of D&D's big hinges, but with a steel yoke and an aluminum body. This combo hinge is perfect for installations where materials are not uniform. It is best suited for applications where the hinge post is steel and the gate itself is aluminum.


Add to Cart

  • SPECIFICATIONS

    Gate Type: Non Self-Closing

    Gate Material: Aluminum, Steel/Ornamental Iron

    Approx. Gate Size: 6'W x 8'H

    Gate Frame/Post Shape: Square-to-Square

    Min Post Size: 1½"+

    Ideal Gate Gap: 2½ - 3"

    Fixing Method: Weld-On

    Color/Finish: Raw, Zinc

    Unit Weight: 2lbs. per hinge

  • HOW TO USE

    {{dynamic_page_collection.How to use}}

  • DETAILS

    High-temperature sealed bearings – safe to powder coat with hinges installed on gate

    No greasing or maintenance required on sealed bearings

    Horizontal adjustability for perfect installations

    Ideal for flat post installation

    Load rating per gate: 1,000lbs.

    Maximum gate weight: 600lbs.
