D&D CI3075 BadAss VersaWeld Hinges

$78.61

$70.75

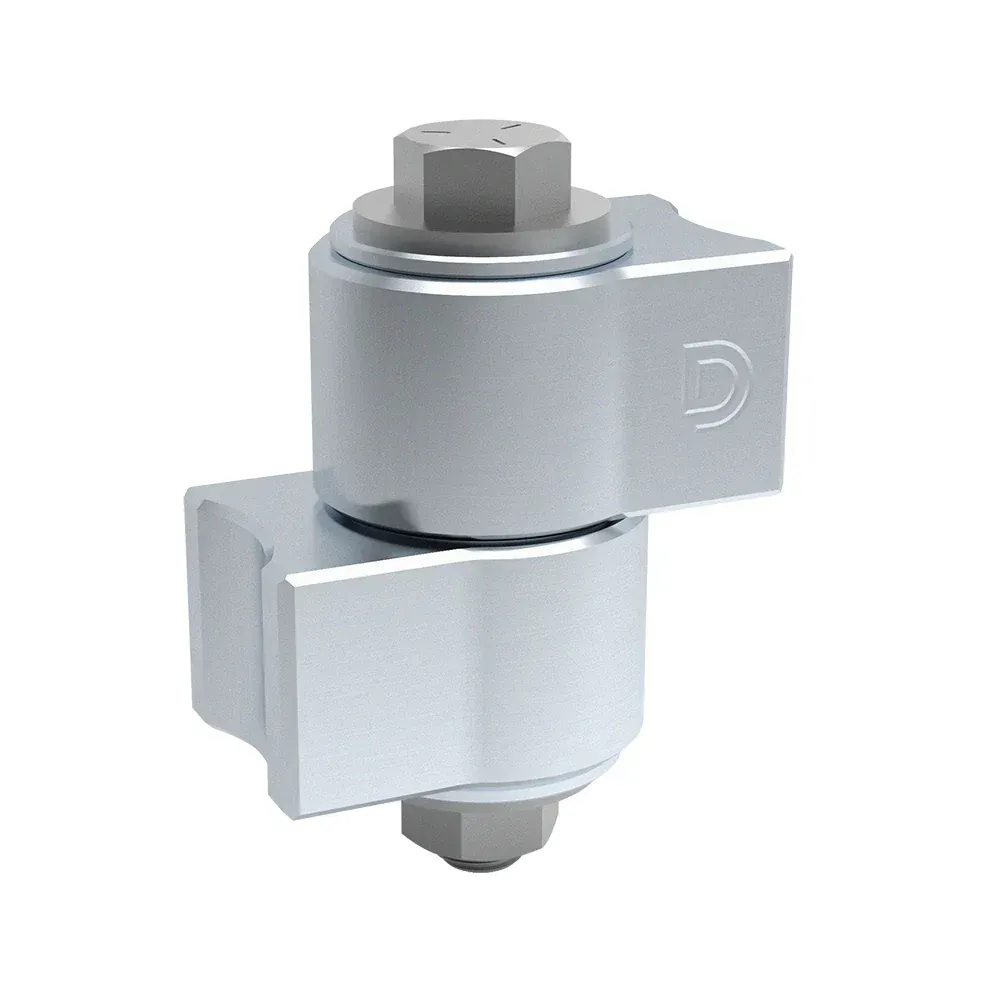

The VersaWeld hinge from D&D is a simple hinge that can be welded to nearly any gate, exactly as is. It is suitable for round and square posts, and has a loadbearing capacity of up to 1,000lbs. As with all SHUT IT hinges, it has been CNC machined to the tightest tolerances in the industry, and its design lends itself to maintenance-free usage.


Add to Cart

  • SPECIFICATIONS

    Gate Type: Non Self-Closing

    Gate Material: Steel/Ornamental Iron

    Approx. Gate Size: 6'W x 8'H

    Gate Frame/Post Shape: Square-to-Square, Square-to-Round, Round-to-Round, Round-to-Square

    Min. Post Size: 1½"+

    Ideal Gate Gap: Fixed at 2¾"

    Fixing Method: Weld-On

    Color/Finish: Zinc

    Unit Weight: 2.5lbs. per hinge

  • HOW TO USE

    {{dynamic_page_collection.How to use}}

  • DETAILS

    Fits either flat or round posts or gates no adaptors needed

    High-temp bearings, safe to powder-coat with hinges installed on gate

    Smoother than traditional block or barrel hinges

    2 sealed ball bearings

    No greasing or maintenance required on sealed bearings.

    Precision bushing distributes gate load for optimal performance and hinge longevity

    Load rating per gate: 2,000lbs.

    Maximum gate weight: 1,000lbs.
