D&D 3770 Half Bolt-On BadAss Hinges

$104.82

$94.34

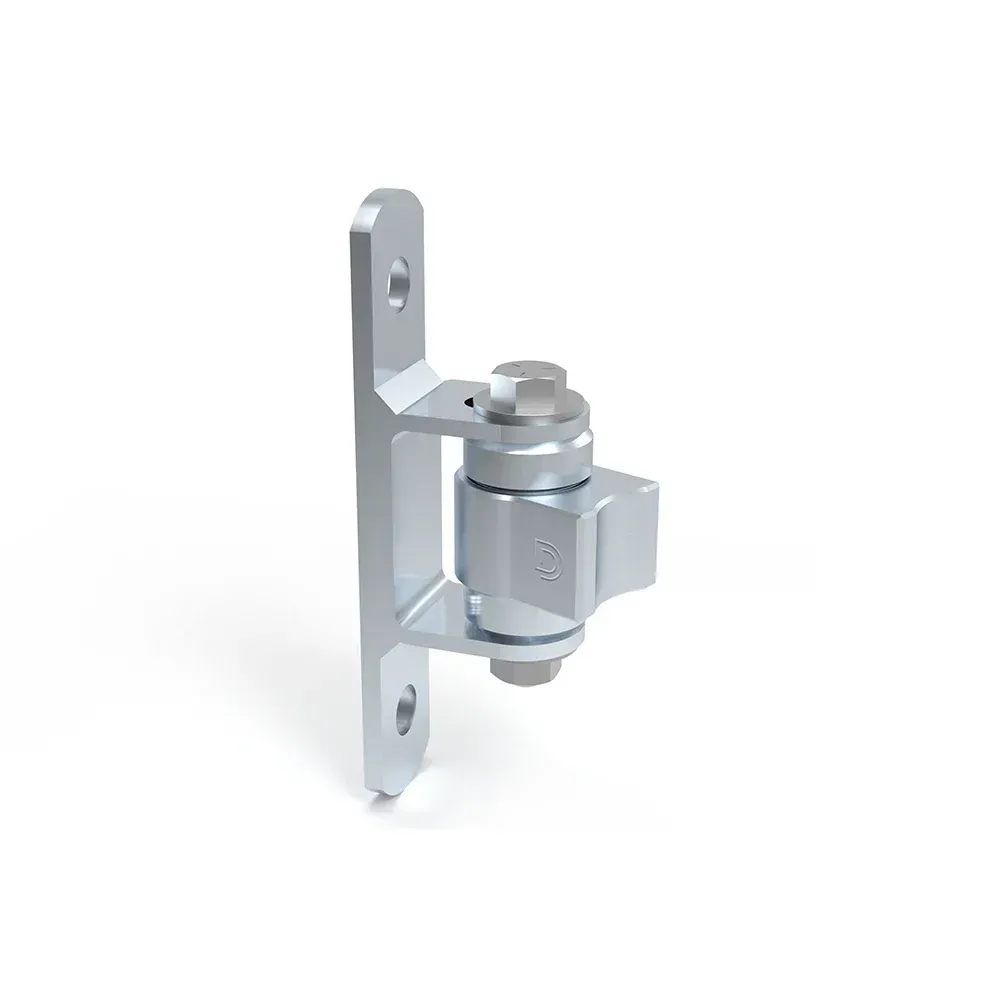

These Bolt-On gate hinges by D&D are machined to the tightest tolerances in the hardware industry. This version of the Bolt-On BadAss hinges was designed to be used in applications where welding hinges to a post is not an option. The near-frictionless movement of the sealed bearings reduces and practically eliminates all need for maintenance.


Add to Cart

  • SPECIFICATIONS

    Ideal for:

    • Pedestrian Gate
    • Double Driveway Gate
    • Single Driveway Gate
    • Pet Gate
    • Playground Gate
    • Public/Commercial Gate
    • Automated/Electric Gate
    • Security Gate
    • Privacy Gate


    Gate Type: Non Self-Closing

    Gate Material: Steel/Ornamental Iron

    Approx. Gate Size: 6'W x 8'H

    Gate Frame/Post Shape; Square-to-Square, Square-to-Round

    Min Post Size1½"+ (38mm)

    Ideal Gate Gap2½-3" (67-80mm)

    Fixing Method: Bolt-On, Weld-On

    Color/Finish: Zinc

  • HOW TO USE

    {{dynamic_page_collection.How to use}}

  • DETAILS

    High-temperature sealed bearings – safe to powder coat with hinges installed on gate

    No greasing or maintenance required on sealed bearings

    Horizontal adjustability for perfect installations

    Flat, bolt-on bracket for through bolting

    Zinc plated

    Load rating per gate: 2,000lbs

    Maximum gate weight: 1,000lbs
