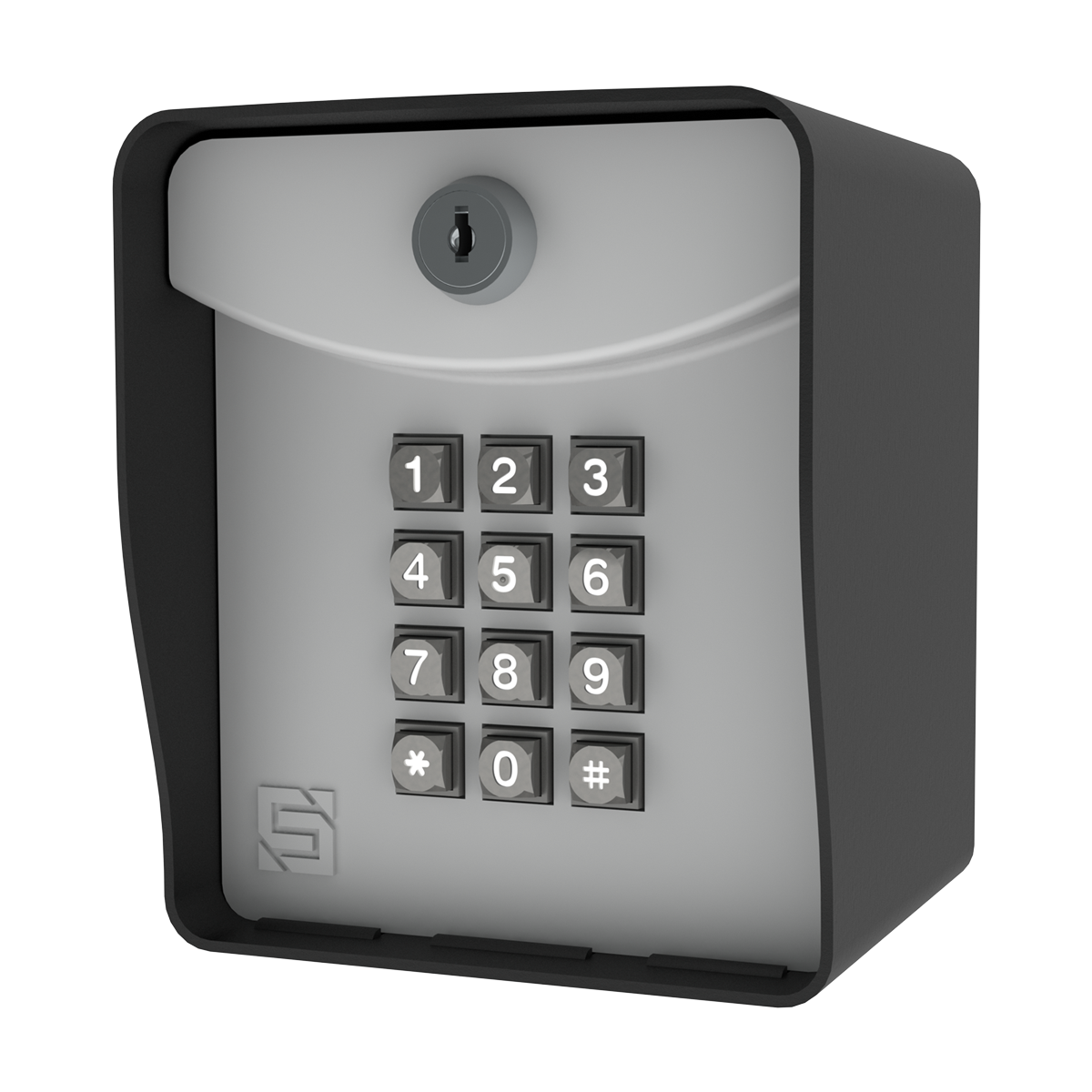

Security Brands Ridge Keypad - Model 14-500

$227.76

The Ridge keypad from Security Brands is a 9V Battery powered wireless keypad. It is enclosed in a durable polycarbonate housing, and comes with a backlit metal keypad. It requires a simple post-mount and the 433MHz Ridge Transceiver can be mounted in any protective enclosure.

With no wires to tie it down, this keypad can be mounted anywhere you need it most!

Add to Cart

  • SPECIFICATIONS

    Wireless range up to 500ft.

    9VDC power input; battery included.

    Input: 12-24VAC/DC

    Current draw

    • < 7.9mA @12VDC standby
    • <11.2mA @12VDC with relay latched

    Relay contact rating: 2A @30VDC /.5A @120VAC

    Max carrying current: 2AVAC/VDC

    Variable relay time from 1-999 seconds.

    Radio frequency 433MHz

    Operating temperature -15°F to 158°F


    Shipping weight: 3lbs.


    Height: 5.74"

    Width: 4.87"

    Depth: 4.73"

  • HOW TO USE

  • DETAILS

    Wireless keypad and receiver; powered by 9V battery

    Up to 500 4-digit codes

    Night light

    Latch mode

    2-door control

    Timed relay output

    One-shot code

    3-strike-out

    Solar friendly

    Audible feedback

    Post mount

    433MHz Transceiver can be housed in any protective enclosure

    Low current draw makes it suitable for solar-powered operations
