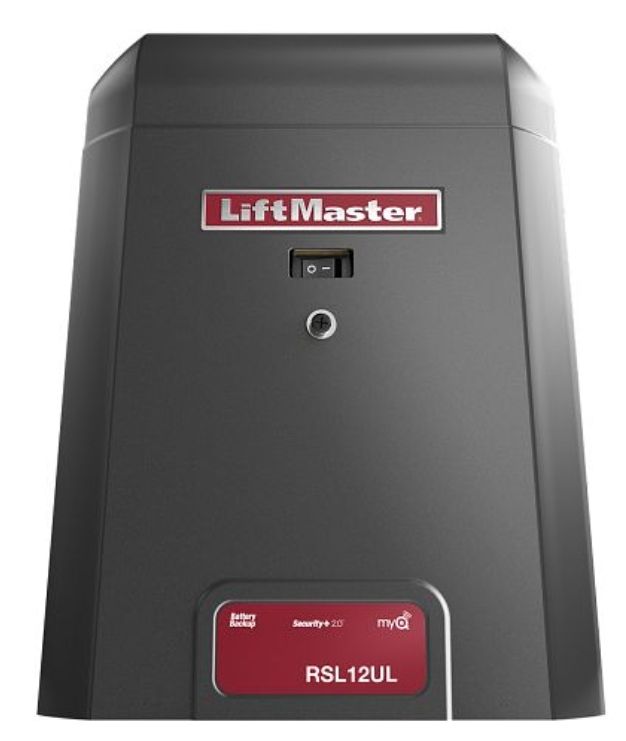

RSL12UL
$1,923.39
LiftMaster's pad-mount residential slide gate operator for gates up to 25ft. in length or 800lbs. Ideal for residential applications, but is suitable for light commercial applications as well. The RSL12 comes with one (1) LMRRUL photo eye and one (1) Monitored Resistive Edge for entrapment protection. It can pair with up to 50 remote controls, can be programmed for Anti-Tailgating, is equipped with an Inherent Reverse Sensor, and much more.
The RSL12 is a highly reliable choice rated for use in Classes I, II, III, and IV.
MyQ compatible.
3-year Manufacturer's Warranty
SPECIFICATIONS
115VAC
LiftMaster Posilock ® prevents unauthorized manual open; manual disconnect when unlocked allows gate to be opened in an emergency.
Battery backup provides 114 cycles or 63 days of standby power.
Accessory power 12VDC 500mA output
Monitored safety inputs: 3 on main board, 3 on optional expansion board.
Operator speed 10in./s
Weight: 100lb.
Height: 23.30
Width: 16.24"
Depth: 16.76"
HOW TO USE
DETAILS
Residential slide gate operator for gates up to 25ft. in length or 800lbs. Ideal for residential applications, but is suitable for light commercial applications as well.
MyQ compatible.
3-year Manufacturer's Warranty
Includes LMRRUL retro-reflective photo eye and a small Monitored Resistive Edge.
Solar compatible.
Wireless communication between operators in dual-gate applications negates the need to trench across the driveway.
Optional heater for colder environments; operator functions -4 ° F - 140 ° F without heater, -40 ° F - 140 ° F with heater.
Usage Class I, II, III, IV
UL325 Listed
