Patriot II AC

$3,099.75

Made in the USA, the Patriot II dual gate system is the perfect set-up for residences, light commercial environments, and farm applications. It brings a short travel time for drive gates, and comes with a built-in close timer. Each actuator arm has independent sensitivity settings to open and close each gate leaf at individual speeds, or in synchronicity.

Comes with a receiver and two transmitters.


Add to Cart

  • SPECIFICATIONS

    500lbs. dynamic thrust; 1000lbs. static holding power

    Opens 90 ° in ~12 seconds.

    Max gate length: 16ft. Max gate weight: 800lbs.

    Solar compatible

    Independent gate leaf sensitivity adjustment.

    Photo eye power management solar friendly software

    Built-in close timer

    Compatible with solar friendly accessories even without solar panels

    For residential, light commercial, or farm and ranch use

  • HOW TO USE

  • DETAILS

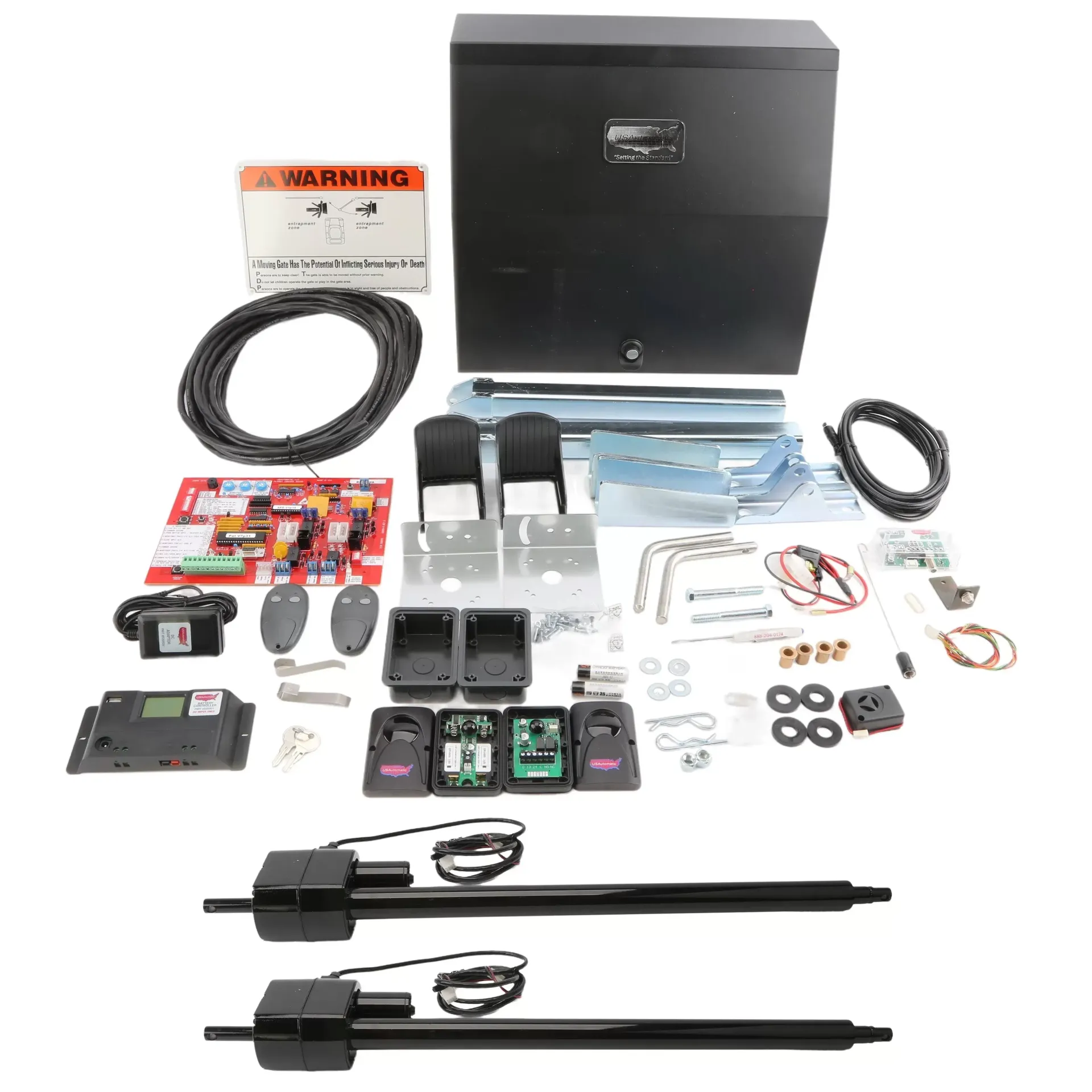

    2 actuator arms, Max. length: 16ft. Max. weight: 650lbs. per gate leaf

    1 control box

    Cabinet

    Cover

    Two (2) 2-button remotes

    1 set Thru-Beam photo eyes

    AC Charging transformer

    Charge Controller

    Charge control harness

    LCR Radio receiver with harness

    Antenna

    Coax antenna cable and bracket

    40' dual gate actuator extension cable

    Two (2) safety signs


    3-year Manufacturer's warranty on parts; 5-year warranty on control board
