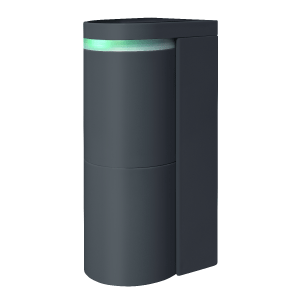

Optex Virtual Loop 2.0

$428.80

The Optex Virtual Loop is a vehicle presence sensor designed to function as a loop, but without having to cut and seal asphalt or concrete. It reliably detects all vehicles within its range (26ft. max.), and can be programmed to ignore nearly all foot traffic. Exceptional stability, even in extreme weather conditions, means the Optex Virtual Loop is a consistent performer for even challenging climates.

The ability to adjust sensitivity to foot traffic makes the Virtual Loop the perfect and cost effective accompaniment to barrier arms and gate operators.

Add to Cart

  • SPECIFICATIONS

    Microwave detection

    Microwave frequency: 24GHz; BLE frequency: 2.4GHz

    Supply Voltage: 12-24VAC/VDC

    Power consumption:

    • Heater enabled: 300mA @ 24V
    • Heater disabled: 90mA @ 24V

    500ms response time

    2 outputs

    Built-in heater

    Detection range up to 26ft.

  • HOW TO USE

  • DETAILS

    Can be programmed to detect vehicles and ignore human traffic

    No cutting, coring, or drilling through pavement

    Direct conduit access to operator

    Flexible power supply

    Wide-angle adjustment

    Visible indicator

    Water resistance

    Presence detection for all types of vehicles

    Can be programmed to ignore foot traffic in with varying degrees of sensitivity

    Phone app required to adjust settings

    Can be used as a shadow loop, free exit sensor, or vehicle protection
