LA500PKGUL

$1,681.90

LiftMaster's LA500 package is a reliable AC powered unit perfect for heavier single-swing gates. Listed as suitable for Classes I, II, III, and IV, it is an all-around reliable performer. It can be adapted to solar in applications where running power isn't feasible, and if there is a loss of power, the operator can run on DC power from the battery backup.

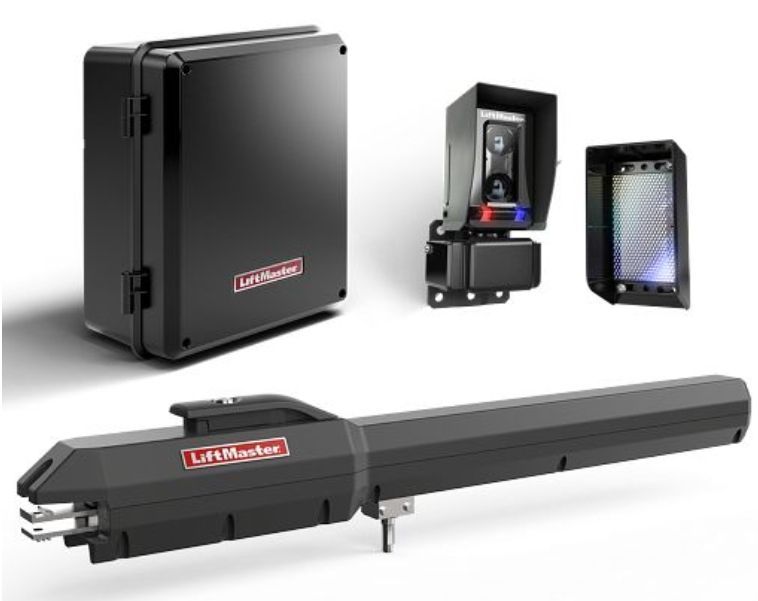

Package includes an actuator arm, a standard control box, an LMRRUL photo eye, and a 1-Year operator warranty.

Add to Cart

  • SPECIFICATIONS

    Power: DC

    Operator Duty rating: 3000 cycles/day

    MyQ compatible

    Battery Backup

    24VDC

    Operator Arm: 35lbs.

    Standard Control Box: 13lbs.

    Accessory Power 24VDC 500mA output

    120/230 single-phase power

    Operation from -4F - 140F

    Continuous duty rating up to 300 cycles/day

    P3 Motor continuous duty motor

    UL325 Listed for Classes I, II, III, IV

    Monitored Safety inputs 3 Main Boards, 3 Expansion Boards

  • HOW TO USE

  • DETAILS

    Single linear actuator and control box for swing gate up to 18ft. in length or 1600lbs.

    LED diagnostic display

    Solar compatible

    Quick close / Anti-tailgating features to prevent unauthorized vehicle access

    Commercial duty aluminum housing with heavy DC motor

    Manual disconnect so gate can be operated manually in the event of power loss; fire department compliance means the gate will auto-open upon power loss or battery depletion

    LMRRUL photo eye included for entrapment protection

    1 year Operator Warranty
