LA412PKGUL

$1,514.99

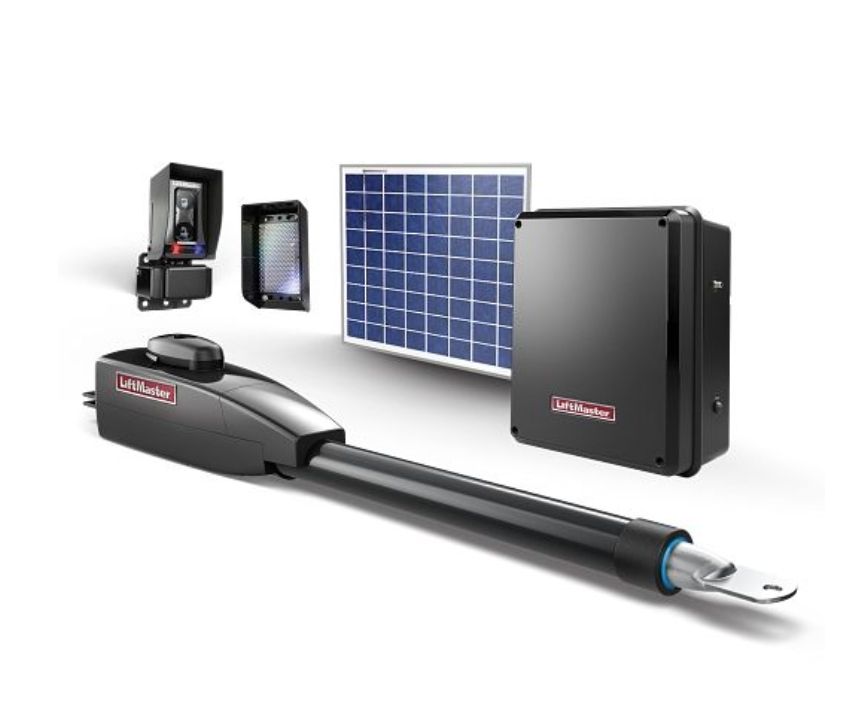

LiftMaster's LA412 package includes the LA412 actuator arm, a 10W solar panel, and Standard control box with LMRRUL photo eye. Ideal for residential applications, the LA412 boasts a 12VDC continuous-duty motor enclosed in a commercial duty aluminum cast housing. This operator has a reputation of reliable function!


NB: All solar operations need access to the appropriate amount of sunlight. If the solar panel is mounted in an area that is shaded at certain times of the year, the operator will be unable to function at normal capacity.

Add to Cart

  • SPECIFICATIONS

    Linear actuator control box and solar panel for gates up to 16ft. in length or 850lb.

    Solar Control box with 10W solar panel kit. Accepts 30W 12V panels.

    3 monitored safety inputs on control board; optional expansion board has 3 more.

    12vdc continuous duty motor.

    LED diagnostic display.

    Anti-tailgate feature.

    Accessory power: 24VDC 500mA output; switched and unswitched power.

    Operations temperature: -4 ° F to 140 ° F; with heater (optional) -40 ° F to 140 ° F.

    Programmable auxiliary relays.

    Surge suppression.

    Fire department compliance: gate opens upon loss of power or battery reduction.



    Actuator arm weight: 19lbs.

    Control Box weight: 13lbs.

    Length: 37.96"

    Width: 3.93"

    Height: 6.06"

  • HOW TO USE

  • DETAILS

    Linear actuator control box and solar panel for gates up to 16ft. in length or 850lbs.

    Solar Control box with 10W solar panel kit. Accepts 30W 12V panels.

    LMRRUL

    Keyed manual disconnect.

    Fire Department compliance (gate auto opens in the event of power loss or battery depletion)

    Heavy duty DC motor with commercial cast aluminum housing.

    In dual-gate operations, operators communicate wirelessly.

    Anti-tailgate feature will pause gate in semi-open position if unauthorized vehicle pulls onto loop or breaks the beam of the photo eye while trying to follow vehicle with access. Gate will remain in that position until the vehicle backs up. Once the vehicle backs up off the loop or away from the photo eye's line of sight, gate will continue to close.

    HomeLink compatible.

    MyQ app compatible.
