LA412DCS

$667.70

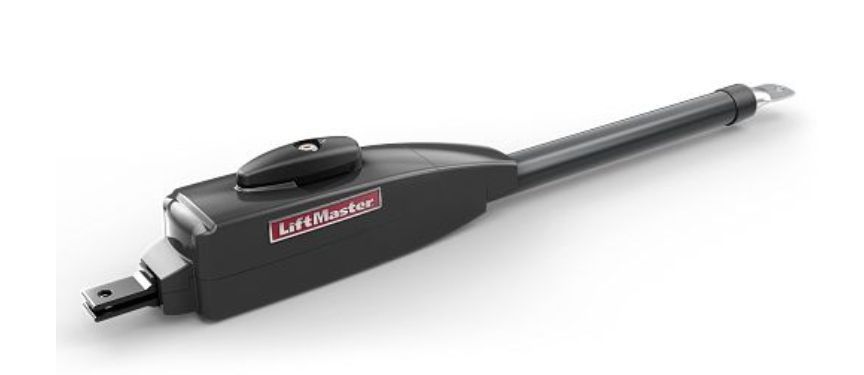

Secondary linear actuator for solar powered gates up to 16ft. in length or 850lbs.

Add to Cart

  • SPECIFICATIONS

    Linear actuator control box and solar panel for gates up to 16ft. in length or 850lbs.

    Solar Control box with 10W solar panel kit. Accepts 30W 12V panels.

    3 monitored safety inputs on control board; optional expansion board has 3 more.

    12vdc continuous duty motor.

    LED diagnostic display.

    Anti-tailgate feature.

    Accessory power: 24VDC 500mA output; switched and unswitched power.

    Operations temperature: -4 ° F to 140 ° F; with heater (optional) -40 ° F to 140 ° F.

    Programmable auxiliary relays.

    Surge suppression.

    Fire department compliance: gate opens upon loss of power or battery reduction.

  • HOW TO USE

  • DETAILS

    Heavy duty DC motor with commercial cast aluminum housing.

    Communicates wireless with master arm.
