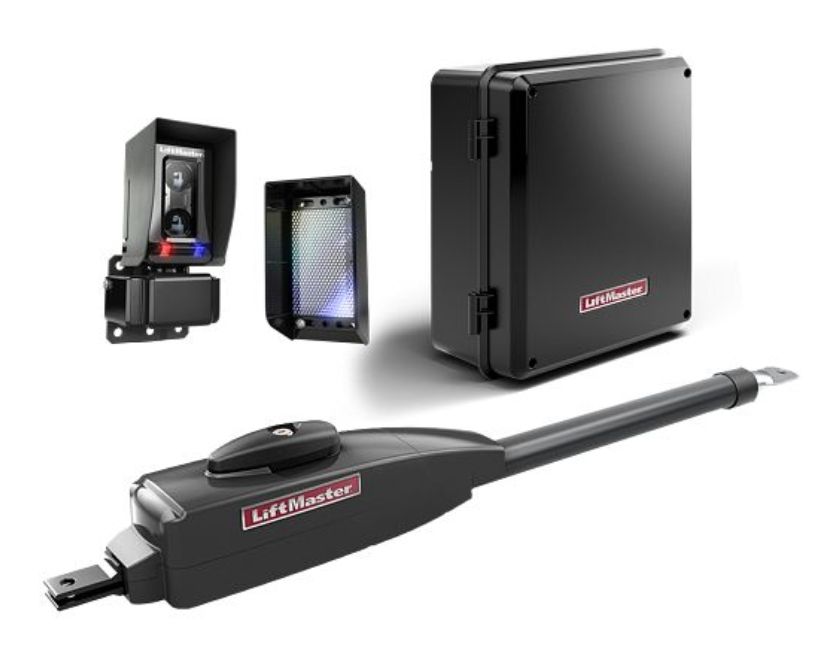

LA400PKGUL
$1,278.98
Linear Actuator and Control box for Single Swing Gates up to 16ft. in length or 850lbs.
Package includes retro-reflective photo eye for gate safety.
Anti-tailgate prevents unauthorized vehicle access.
Wireless dual gate communication for synchronized close.
Solar compatible.
SPECIFICATIONS
DC
MyQ compatible
24VDC accessory power, 500mA output
120 single-phase
90 ° opening in 15-17 seconds.
Operator Arm: 19lbs. Control Box: 13lbs.
Height: 6.06" Width: 3.93" Length: 37.96"
Monitored safety inputs 3 Main Boards, 3 optional Expansion Boards
HOW TO USE
DETAILS
UL325 classifications I, II, III, IV
DC
24VDC
120 single-phase
-4F - 140F operation
DC Residential/Light Commercial motor power
100 duty cycles a day
Battery backup
MyQ Diagnostics enabled
