IRB-MON2

$217.77

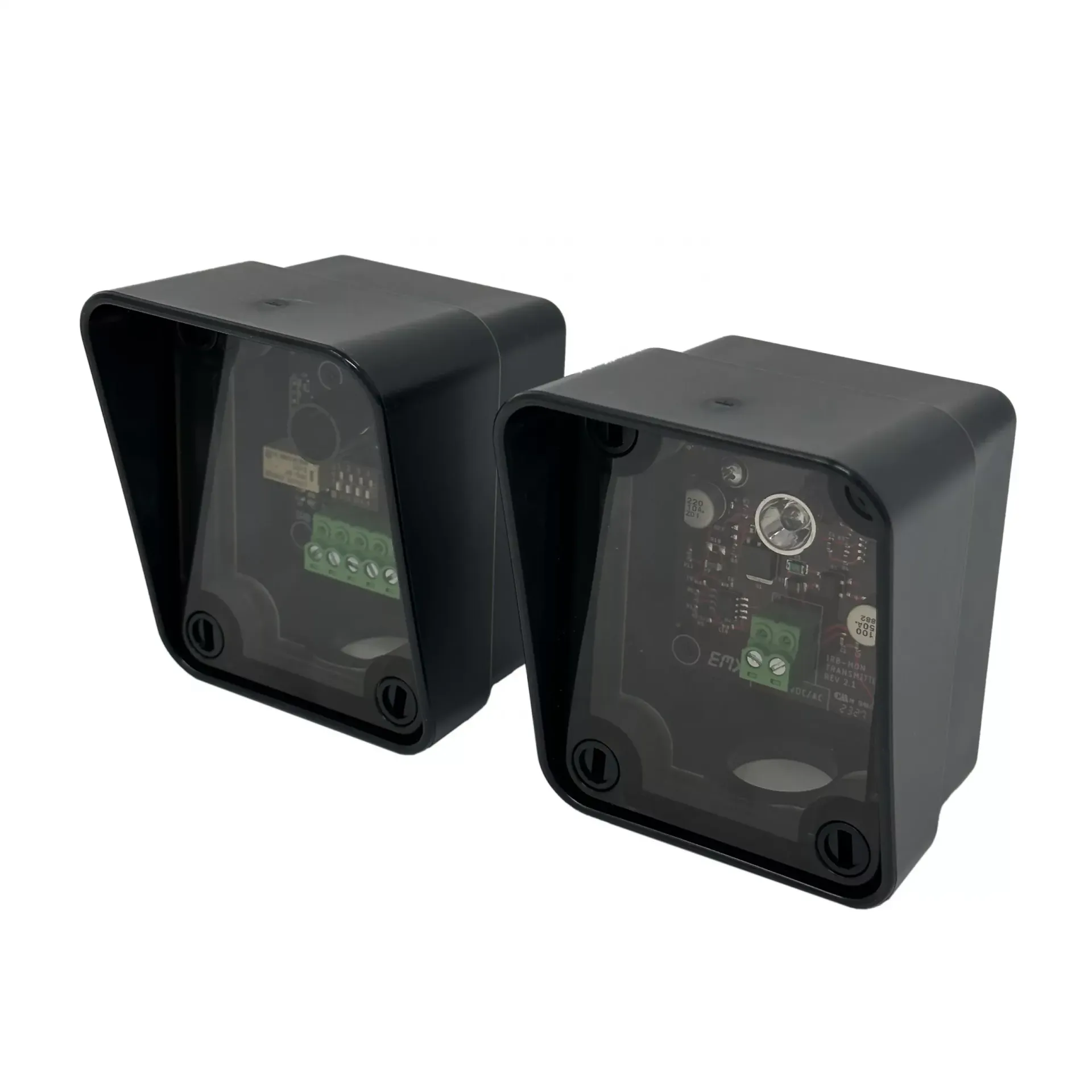

The IRB-MON2 is a monitored thru-beam photo eye. It is UL325 compliant; the enclosure is IP65 rated for outdoor use and weather resistance. Compatible with most non-monitored legacy products.

Add to Cart

  • SPECIFICATIONS

    4 different monitoring interfaces, and up to 115ft operating distance; thru-beam photo eye.

    UL325 compliant

    Removable terminal block for easier wiring

    Can be used in non-monitored applications

    Relay output configuration: Form C contacts (N.O., Comm., N.C.)

    Response time < 300ms (for use in N.C. or 10k monitoring)

    Current (Pulse Monitoring): 15mA

    Current (N.C. and 10k Monitoring): 35mA DC (aligned and relay activated)

    Power: 6-35VDC, 12-24VAC


    Dimensions

    Length: 3.6"

    Width: 2.9"

    Height: 2.9"

  • HOW TO USE

  • DETAILS

    Kit includes:

    • Transmitter
    • Receiver
    • Protective hoods
    • Removable sun shield
    • Thru-beam configuration


    Integrated sensor hood for protection against the elements.

    Removable terminal block for easy wiring.

    Varying UL325 compliant monitoring methods make the IRB-MON2 adaptable.
