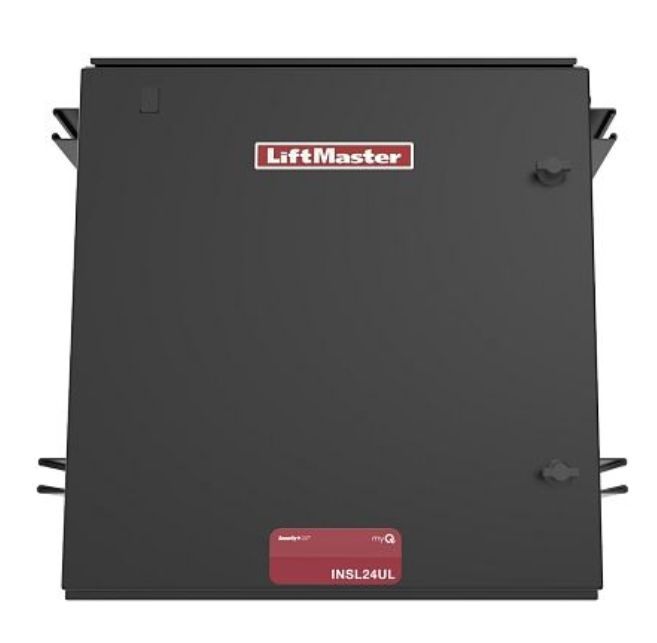

INSL24UL
$2,906.00
LiftMaster's INSL24UL is an industrial slide gate operator for gates up to 70ft. in length or 2200lbs. Equipped with a continuous duty motor, it is ideal for extremely demanding commercial environments. UL325 compliant and listed for Classes II, II, and IV.
The INSL24UL operator comes with LMRRUL photo eye and Monitored Resistive Edge to meet UL325 safety requirements. It can be post mounted or riser mounted, and can be used in solar applications.
SPECIFICATIONS
120/240VAC Single Phase.
Optional 3-phase conversion kit. Converts a 3-phase input voltage of 208/240/480/575VAC to an output voltage of 120VAC.
Accessory Power 24VDC, 1A max. output; switched and unswitched power.
Used for Classes II, III, and IV.
Variable gate speed from 0.5ft/sec to 1ft/sec.
Inherent reversing sensor.
Monitored safety inputs, 3 on Main Board, 3 on Expansion Board.
Security+2.0 on-board radio receiver takes up to 50 remotes (unlimited 811LMX).
LED diagnostic display.
Programmable auxiliary relays.
HomeLink compatible.
5-Year warranty.
Weight: 129lbs.
Height: 30.1"
Width: 27.5"
Depth: 17.1"
HOW TO USE
DETAILS
Industrial slide gate operator for gates up to 70ft. in length or 2200lb.
#40 industrial chain provides pull weight double the gate.
MyQ powered for access control.
In a dual-gate system, operators communicate wirelessly.
LiftMaster's Posilock feature closes the gate automatically when the gate is pushed from the closed limit. Quick close prevents tailgating and unauthorized entry.
Comes with LMRRUL and Monitored Resistive Edge to meet UL325 safety requirements.
24vdc continuous duty motor.
120/240vac single-phase power; three-phase power conversion available. Solar compatible.
Post mount or MRIN mount.
