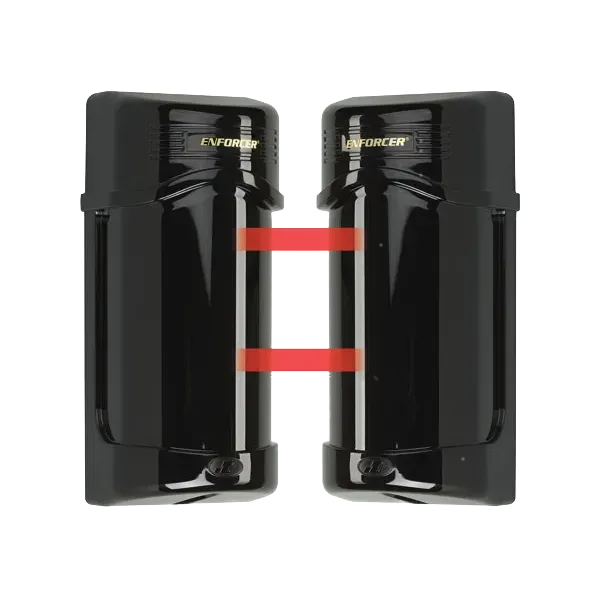

Enforcer Photo Eye

$75.64

The Enforcer long range photobeam detectors are easy to install, and provided extended range of communication. Designed for indoor and outdoor use.

Add to Cart

  • SPECIFICATIONS

    Operating voltage 12~30VDC/VAC, 60Hz, 200mA

    N.C./N.O outputs

    50mA current draw for laser alignment; 150mA current draw for active operation excluding laser alignment

    10ms interrupt speed

    Trigger output: SPDT, N.O./N.C./COM relay, 1A @30VDC/VAC with built-in 10k-ohm resistor on N.O. output

    Laser wavelength 650nm

    Laser output power >5mW

    Operating temperature -13 °  F - 130 °  F

    Weight: 2.5lb.

  • HOW TO USE

  • DETAILS

    Up to 90ft outdoor; up to 190ft indoor.

    Detection requires simultaneous breaking of both photo beams. This helps to prevent false trips and alarms.

    Automatically adjust beam strength to match different weather conditions.

    Anti-frost system and weatherproof sunlight filtering case for reliable outdoor use.

    U-brackets included for pole mounting.

    N.C. tamper circuit included.

    Special noise rejection circuitry helps to automatically filter input power.

    Non-polarized power inputs.

    Built-in laser alignment system.

    UL325 compliant.
