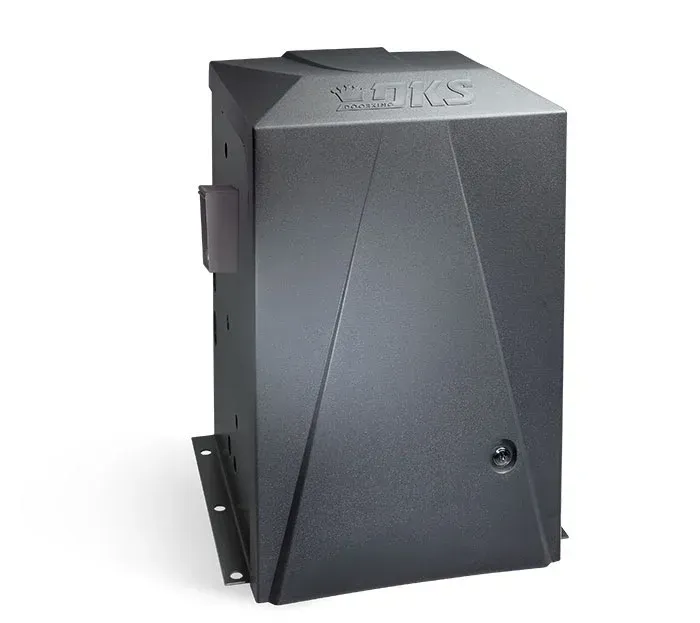

DKS 9150 Commercial and Industrial
$2,720.48
The 9150 is designed for commercial/industrial use, but it can also be fitted to residential applications. It can be mounted to the front, center, or back of a gate without requiring extensive modifications to do so. It can be pad or post mount, adding to its versatility. The 9150 is offered with a choice of metal or polypropylene cover.
SPECIFICATIONS
Pad or post mount.
Self-setting limits.
Max. gate length: 30ft. (1/2hp motor) or 45ft. (1hp motor).
Max. gate weight: 1000lbs. (1/2hp motor) or 1500lbs. (1hp motor).
1/2hp or 1hp continuous duty motor.
Operator requires additional safety devices for entrapment protection; is shipped with 20 ft. of #40 chain.
Ports for plug-in loop detectors.
Anti-tailgating and partial open features.
Fail-safe release (fail-secure optional).
HOW TO USE
DETAILS
Shipping weight: 125-185lb.
Dimensions with Metal Cover:
Width: 15.25"
Depth: 16.75"
Height: 24.50"
Dimensions with Polypropylene Cover:
Width: 15.46"
Depth: 16.75"
Height: 24.50"
