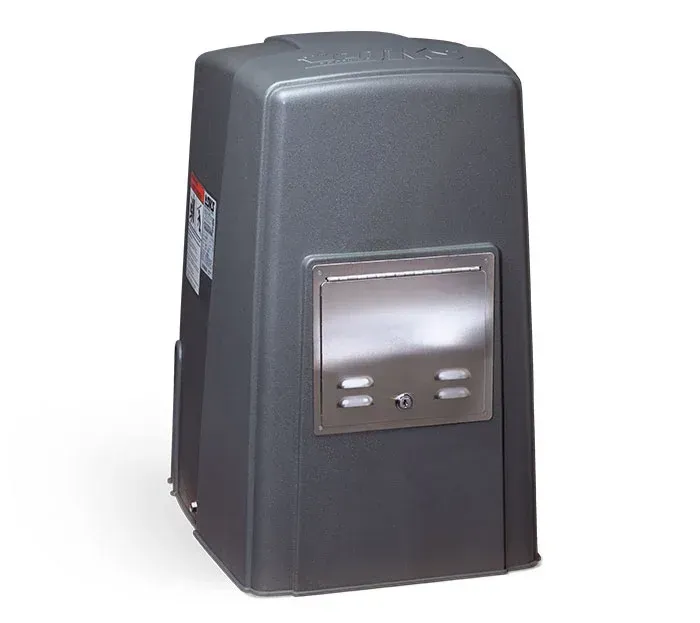

DKS 9024 Residential and Commercial

$2,759.68

The 9024 Operator can run exclusively on AC power with battery backup, or it can be wired to solar power. Compatible with end-user's solar panel, but DKS also provides a solar kit.

With the DKS 9024 Gate Operator, convenience, reliability, and safety come in a compact design. Ideally for residential and commercial applications, the 9024 comes with a Quadra Drive DC motor designed to run as smoothly and quietly on solar power as it does on hardline power. If power is interrupted, 7.2Ah batteries act as power backup for the belt-driven motor.

Suitable for Classes I, II, III, and IV. Requires additional entrapment protection devices for installation to meet UL325 safety guidelines.

Add to Cart

  • SPECIFICATIONS

    Residential and commercial slide gate operator.

    Solar adaptable.

    Pad mount.

    Max. gate length: 40ft. Max. gate weight: 1000lbs.

    115, 230VAC input: 1.8A/0.9A or 24VDC input 8A

    Two 7.2Ah batteries ensure approx. 40 gate cycles in the event of power loss. Solar compatible if AC power is unavailable.

    Adjustable chain drive limits.

    Auto-close timer 1-30 seconds.

    DC power shutoff switch.

    Battery protection circuit.

    Selectable Loop/Reverse input function.

    Anti-tailgating feature.

    1/2hp Quadra Drive motor.

    Ports for plug-in Open and Revers loop detectors (only compatible with DKS products).

    Operator requires additional devices for entrapment protection.

  • HOW TO USE

  • DETAILS

    Two (2) 7.2Ah batteries.

    Heavy duty gearbox.

    Heavy duty steel frame - 3/16 steel, corrosion protection - for stability and support.

    T-handle release accessible from front of operator; operator reconnects automatically when handle is released.

    Standard N.C. (normally closed) stop circuit.

    Gate Tracker reporting output provides operator data to certain access control systems (1833, 1835, 1837, or 1838).

    AC Powered only - 115 VAC convenience outlets.

    DC Powered only - 0.0A SBPD circuit for longer battery life.

    1/4-inch thick polypropylene cover.

    Unit ships with 20ft. of #40 roller chain.

    Heater optional, but recommended for cold weather environments to ensure continued operation in negative temperatures.
