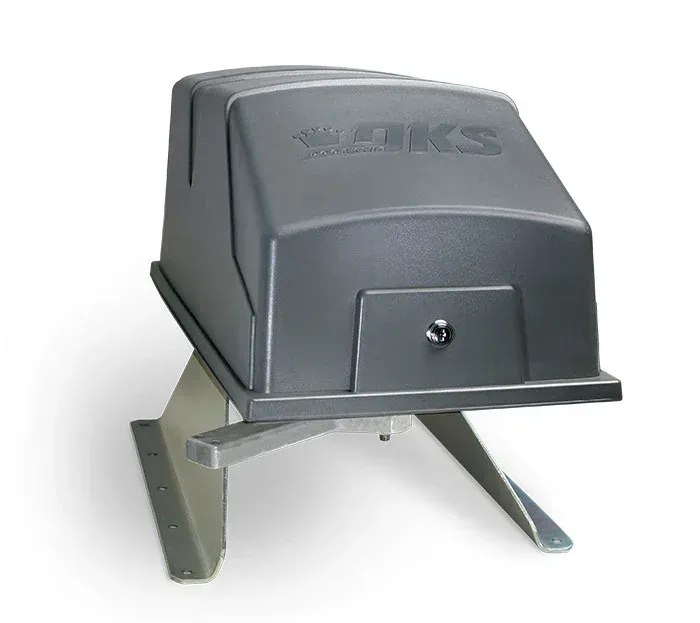

DKS 6300 Commercial and Industrial
$2,282.56
The DKS 6300 is one of the more unique swing gate operators on the market in that the articulating arm attaches to the bottom of the operator instead of the top. This makes it a low-profile installation. The operator itself is compact and reliable, offering a smooth and seamless operation.
The 6300 series comes with two built-in inherent reverse mechanisms, one mechanical, the other electronic. NB: further entrapment protection devices are required to make installations UL325 safety compliant.
This series offers 1/2hp motor and a 1hp motor.
SPECIFICATIONS
1/2hp continuous duty motor - Max. gate length: 18ft. Max gate weight: 700lbs.
1hp continuous duty motor - Max. gate length: 22ft. Max gate weight: 800lbs.
90 ° gate swing in 15-18 seconds.
Self-setting magnetic limit switches.
Fail-safe release.
Plug-in loop detector ports.
Tamper detection circuit.
Rust resistant G90 galvanized steel frame.
Auto-close timer.
Weight:
120-160lbs.
Height: 13"
Width: 16"
Depth: 31"
HOW TO USE
DETAILS
Commercial and industrial swing gate operator.
Pad or post mount.
1/2hp continuous duty motor - Max. gate length: 18ft. Max gate weight: 700lbs.
1hp continuous duty motor - Max. gate length: 22ft. Max gate weight: 800lbs.
Self-setting magnetic limit switches.
Keyed access for manual gate operation in the event of a power outage.
Built-in primary and secondary entrapment protection systems. Additional safety devices required to meet UL325 safety requirements.
Two-piece articulating arm to manage slow-start/slow-stop. This feature extends life of the motor.
