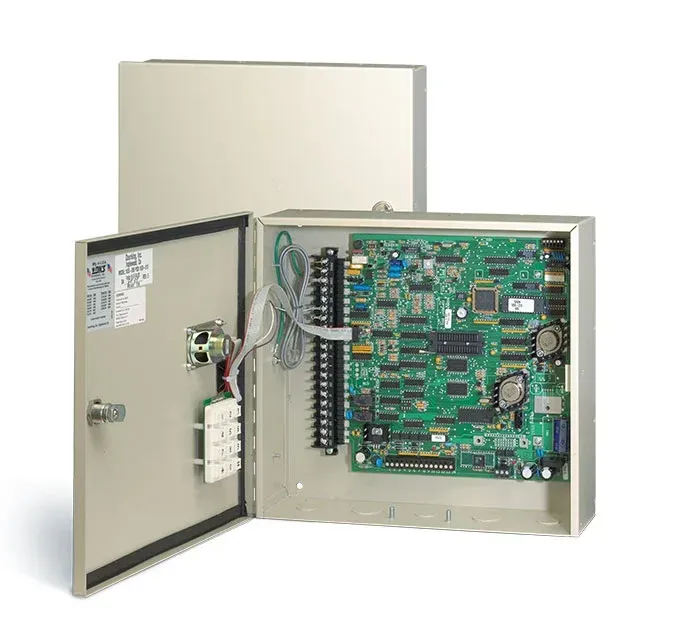

DKS 1838 Access Control Sys

$1,500.80

The 1838 access controller is ideal for small businesses, office buildings, apartment complexes, and any other application that requires access control and reporting capabilities for multiple entrances. The 1838 is a 2-door controller than can be expanded to cover up to 48 doors with wired expansion boards; it can cover up to 24 doors wirelessly.

Each unit can be connected via Cellular, Internet, or Telephone service. The system allows access via cards, PINs, wireless RF, and most 26-bit Wiegand devices.

Add to Cart

  • SPECIFICATIONS

    Elevator control for up to 8 elevators each serving 64 floors. Requires Elevator Expansion boards.

    Expandable to control up to 48 wired or 24 wireless entry points. Requires Tracker Expansion boards.

    2 (two) 16VAC, 20 VA power transformers supplied.

    RS-232 connecting cable.


    Dimensions

    Height: 10.25"

    Width: 12.25"

    Depth: 4.25"

    Shipping Weight: ~20lbs.

  • HOW TO USE

  • DETAILS

    Up to 3000 user names;

    up to 255 area codes;

    31 security levels 29 of which are programmable;

    8 hold-open time zones;

    3 anti-pass back configurations: passive active and trap.

    4-digit entry codes per telephone number.

    3 Form C dry contact relays.

    Holiday schedule.

    Hold open time zones.

    Entry code time zones.

    Postal lock input.

    Built-in clock/calendar.
