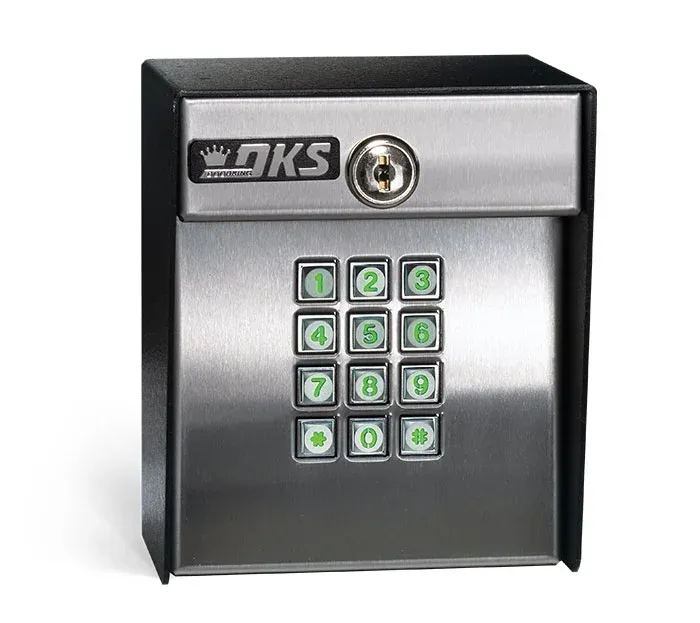

DKS 1500 Digital Keypads

$498.40

The DKS 1500 series keypads are secondary keypads designed to be used in conjunction with an existing Telephone Entry System. THEY ARE NOT STAND-ALONE UNITS. THEY ARE NOT WEIGAND OR RS-485 OUTPUTS.


These secondary keypads allow existing entry codes already programmed into the main system to grant access to secondary entry points, typically on the interior side of a gate operating system.

Add to Cart

  • SPECIFICATIONS

    1506 Keypad - 16VAC. Two (2) Form C dry contact relays.

    1513 Keypad - 12-24VAC/VDC. RS-485 output (this model is not suitable for stand-alone applications; must be connected to an access controller, i.e. DKS Access Plus series)

    1515 Keypad - 12-24VAC/VDC. REX input. One (1) dry contact relay; 30V 1A contacts.

  • HOW TO USE

  • DETAILS

    Up to 1000 4-digit entry codes.

    Six 5-digit entry codes.

    Steel cabinet with stainless steel faceplates and metal keypads.

    PIN codes are programmable from keypad.

    Memory will not lose programmed codes during power outages.

    Hold open codes for gates and doors.
