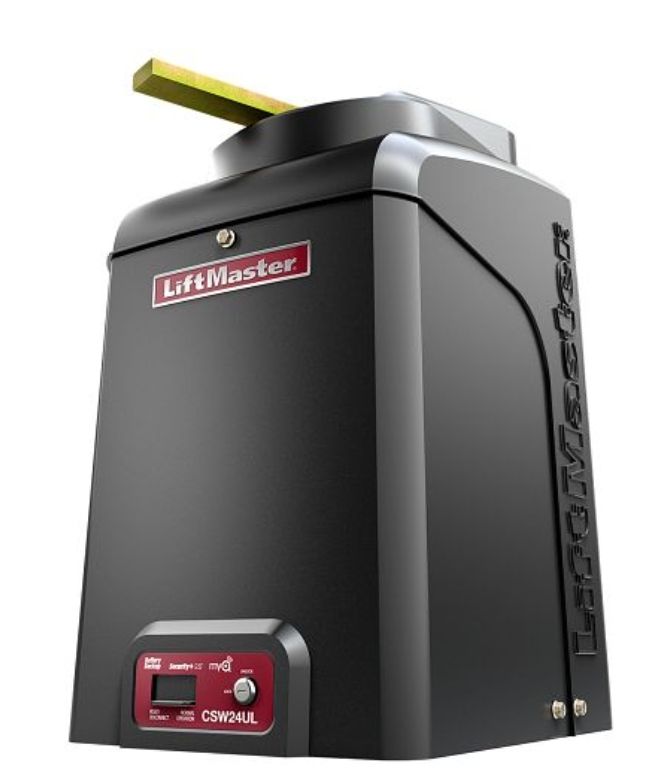

CSW24UL
$2,543.40
LiftMaster's CSW24UL is a high-traffic gate operator designed for commercial environments. It is classified for use in Class I, II, III, and IV applications.
SPECIFICATIONS
24vdc continuous duty motor. 120/230VAC single-phase power.
Three-phase conversion option converts input voltage from 208/230/460/575VAC to an output voltage of 120VAC.
Pre-motion warning alarm activates on-board alarm 3 seconds before gate begins to move.
Securit+2.0 radio receiver: Tri-band 310/315/390MHz frequency for up to 50 remote controls per operator (unlimited if 811LMX remotes).
LED diagnostics display.
Programmable auxiliary relays for additional features.
Monitored safety inputs: 3 on Main Board, 3 on Expansion Board.
Bi-part delay feature.
Inherent reversing sensor.
Gate travel opens 90-degrees in 15 seconds.
Functions in temperatures from -4 ° F - 140 ° F; with optional heater, -40 ° F to 140 ° F.
Weight: 206lbs.
Height: 27.99"
Width: 19.63"
Depth: 15.55"
HOW TO USE
DETAILS
Commercial swing gate operator for gates up to 18ft. in length or 1600lbs. Includes LMRRUL photo eye and Monitored Resistive Edge to meet UL325 safety requirements.
Built-in reversing sensor detects obstructions; gate stops and reverses path when it meets hard resistance, such as a person or vehicle.
Battery backup for continued operation when power is down.
Solar compatible, depending on region.
Surge suppression to protect against lighting strikes up to 50 ft. away.
Wireless dual gate communication to eliminate the need to sawcut across driveway.
Made with MyQ technology.
