CP4-200
$277.69

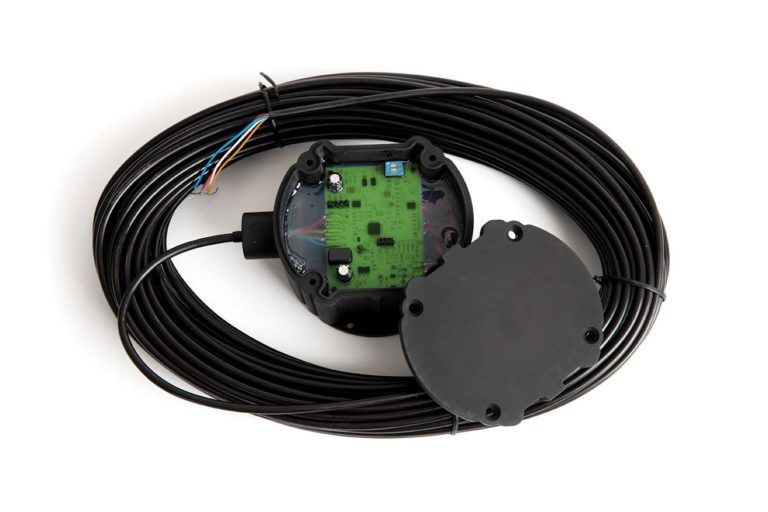

Vehicle detection driveway probe w/200ft. lead. One of the lowest stand-by current draws on the market, the CP4 is compatible with any power or solar operators. With a self-contained system, universal DC or AC voltage, and industry standard color coded wiring, the CP4 is a plug-and-play kit. The magnetometer only detects moving steel, preventing false opens.
SPECIFICATIONS
Requires 8-24VAC or 8-30VDC power.
Stand-by current: 30-70μA (microamps)
Alarm current: 40-50mA
Relay time 2-3 seconds
Strength rating: 9.53 ton-force
HOW TO USE
DETAILS
May be installed up to 200ft. from operator. Vehicle must be going at least 5mph to trigger automatic open.
4.5in. dia. x 2.5in. ht.
