CARTELL WIRELESS

$382.72

The Cartell Wireless System for free exit. Sensor powered by magnetometer, so it only responds to moving steel, not heat, motion, or pressure. Redundant two-way radio ensures signal always reaches the receiver.

The Wireless System integrates with any home security or automation system; any moving vehicle will trigger the system.

Detection up to 2500ft if installed above ground with clear line of sight; ground level installation with clear line of sight gets 1000ft.


NOT SUITABE FOR SOLAR APPLICATIONS.

Add to Cart

  • SPECIFICATIONS

    Long range radio at 915MHz. RANGE IS ALWAYS DETERMINED BY INSTALLATION AND OBSTRUCTIONS.

    Integrator's relay contact connects to any security or home automation system, or any gate operator.

    No external transmitter or antenna.

    Functional above ground, in ground, or in driveway.

    PUCK:

    Requires 2 CR123A 6V batteries

    Standby Current 22µA (microamps)

    Alarm Current 130mA (milliamps)

    Enclosure rating IP68

    Strength rating 9.39 ton-force

    Operation temperature range -25 ° F-140 ° F


    INTEGRATOR:

    Requires 8-24VAC/8-30VDC power

    Standby Current 25mA

    Alarm Current 40-80mA

    Relay time 2sec.

    Relay contacts SPDT, N.O. or N.C. (Form C)

    Relay contact rating 2A/24VDC (1mA/5VDC min. load)


  • HOW TO USE

  • DETAILS

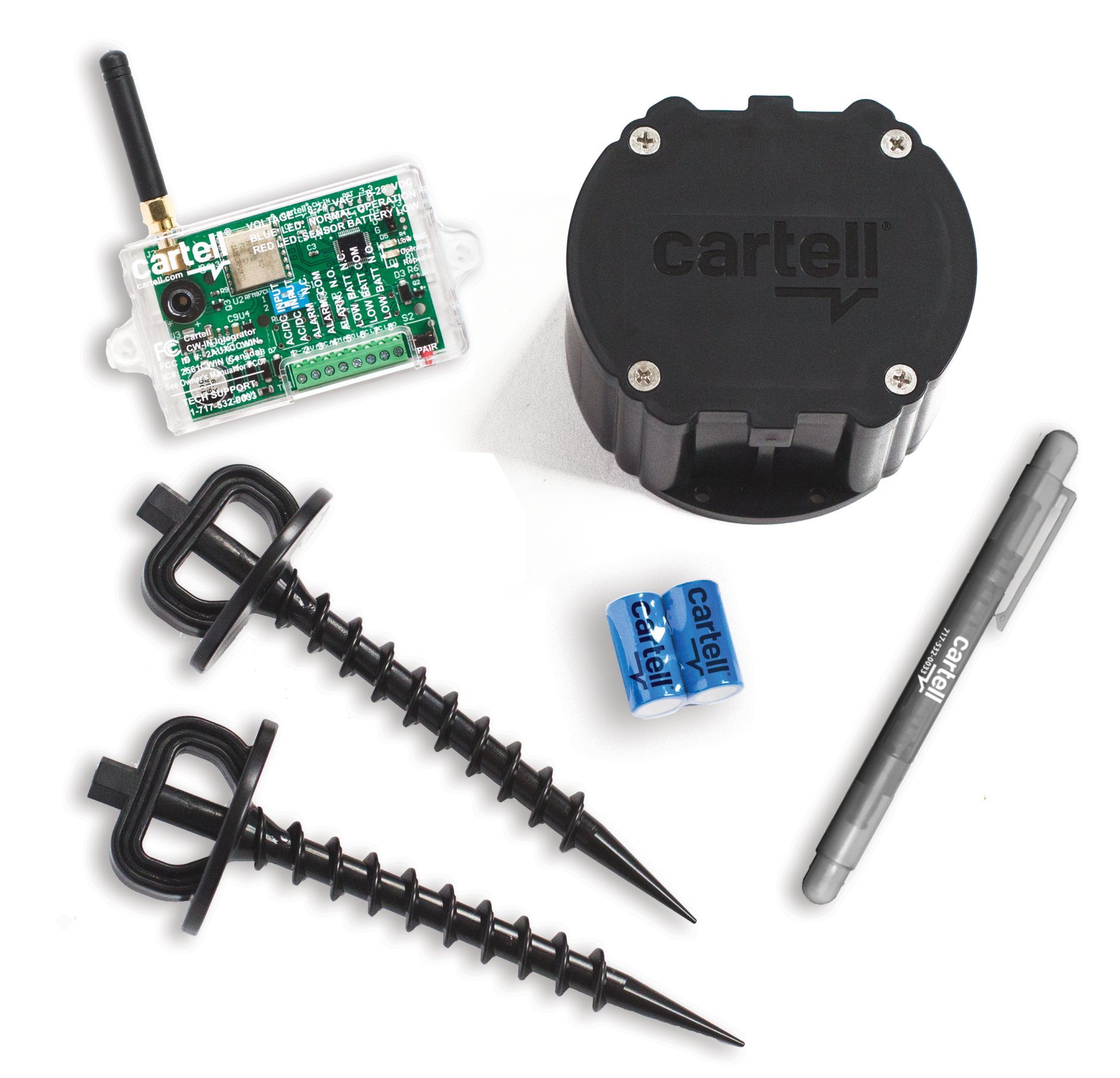

    System includes:

    • Sensor puck
    • Integrator
    • Auger screws
    • Batteries and clips
    • Terminal block screwdriver

    3-year Manufacturer's Warranty.

    4.5in. dia. x 2.5in. ht.


    NOT SUITABE FOR SOLAR APPLICATIONS.
