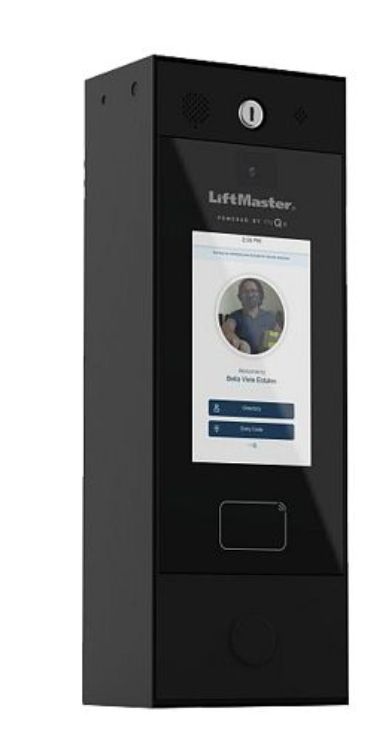

A black box with a picture of a man on it.

CAPXM 2-Door Access Control System

$3,192.00

$2,096.33

The CAPXM is a resident-facing smart access system providing 2-door access control on a Cloud-based network.

The CAPXM's wide angle camera allows live viewing of access points, and even recorded events where access was attempted. The straightforward user interface and hi-def display make it ideal for resident interactions. Cloud-based security safeguards data and resident information, making it the perfect access control for apartment complexes and HOAs.

Add to Cart

  • SPECIFICATIONS

    Control through MyQ Community app.

    4- to 8-digit entry codes; 4- to 6-digit directory codes

    Wiegand input: 2

    Relay output: 4 (2 primary, 2 auxiliary)

    Connectivity through VOIP using the Internet via Ethernet 10/100 (DHCP, static configuration), or through WiFi (DHCP configuration only).

    7-inch, 720p display, fade and glare resistant touch-screen.

    Wireless communication with LiftMaster UL325 listed gate operators manufactured after 2017.

    50,000 local resident capacity per unit.

    Power supply 24VDC, 16W (min.) class 2 , Level VI efficiency; input 120VAC, 2A 50/60Hz

    MyQ diagnostics capable


    Weight: 11lb.


    Height: 17"

    Width: 6.125"

    Depth: 4"


  • HOW TO USE

    {{dynamic_page_collection.How to use}}

  • DETAILS

    2-door Cloud based access control. High definition touchscreen display and wide-angle camera.

    Integrated wide-angle camera.

    Hi-def display resistant to fade.

    Receive alerts and HD video when access is attempted.

    Performs in climates from -20 ⁰ F to 130 ⁰ F.

    Residents can manage property access via smartphone; can safely identify guests, and grant or deny access from anywhere on the property.

    Two-factor authentication to protect resident data.

    Email notifications alert users to suspended codes, over-used codes, or if service is required for the Intercom, Controller, or gate operator.
