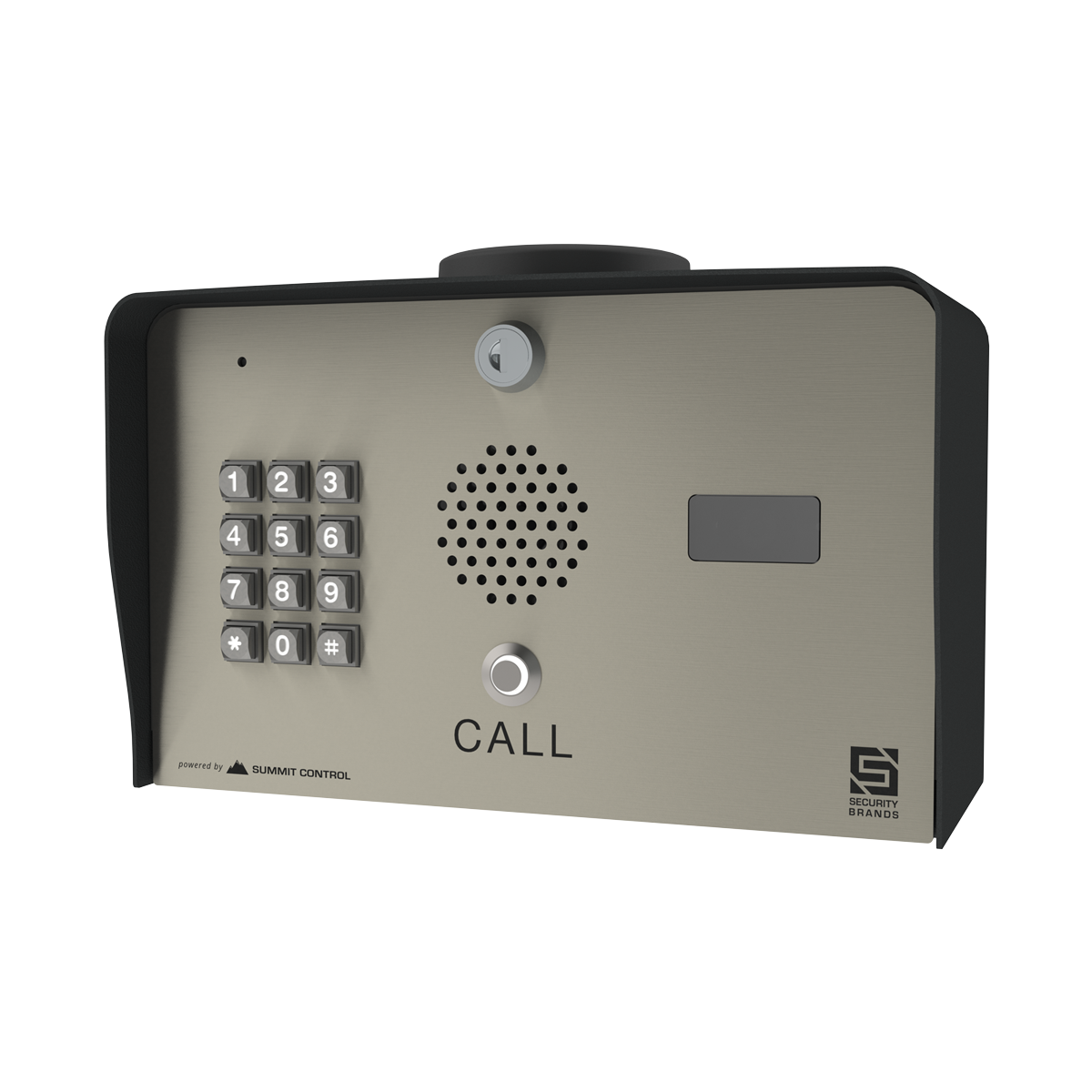

ASCENT X1

$1,743.27

The Ascent X1 is an access control system designed for up to 2 gates or doors. Wiegand-selectable on AT&T or Verizon, the system auto-selects whichever network is strongest for communication. The X1 system comes with the option of an added camera to the standard keypad and telephone entry.

Guest passes can be time-limited or use-limited, and the local memory will store up to10,000 unique key codes. Management of the X1 is cloud based, and comes with the ability to conduct detailed audits of access attempts and code uses. It's the ideal access control for an apartment complex and some commercial applications.

Add to Cart

  • SPECIFICATIONS

    12-24VDC input

    Current draw

    • < 330mA at 12VDC
    • <160mA at 24VDC

    Contact rating 10A at 120VAC/24VDC

    Max switching voltage: 250VAC/30VDC

    Max switching current: 15A

    Max switching power: 240W/2770VA

    Wiegand-selectable for AT&T and Verizon

    Auto network selection


    Dimensions:

    Length: 5.25"

    Width: 10"

    Height: 6.68"


    Unit Shipping Weight:

    8lbs.

  • HOW TO USE

  • DETAILS

    Operating temp. 15 ° F - 158 ° F

    Control via

    • App
    • Text
    • Voice
    • Keypad
    • Call button
    • Wiegand devices
    • QR cod guest pass

    Unit includes SIM card.

    Cellular telephone entry system w/camera and keypad

    Control up to two (2) gates or doors

    2 Wiegand inputs

    GuestPass can be time- or use-limited

    Up to 10,000 users (depending on plan)

    UP to 10,000 unique key codes stored locally

    Rollover calling up to 3 numbers

    Broadcast calling up to 10 numbers

    Cloud-based access control management

    Weekly event schedule

    Audit trail with detailed reports

    Pluggable terminal blocks
