AOM SLDC90

$1,811.81

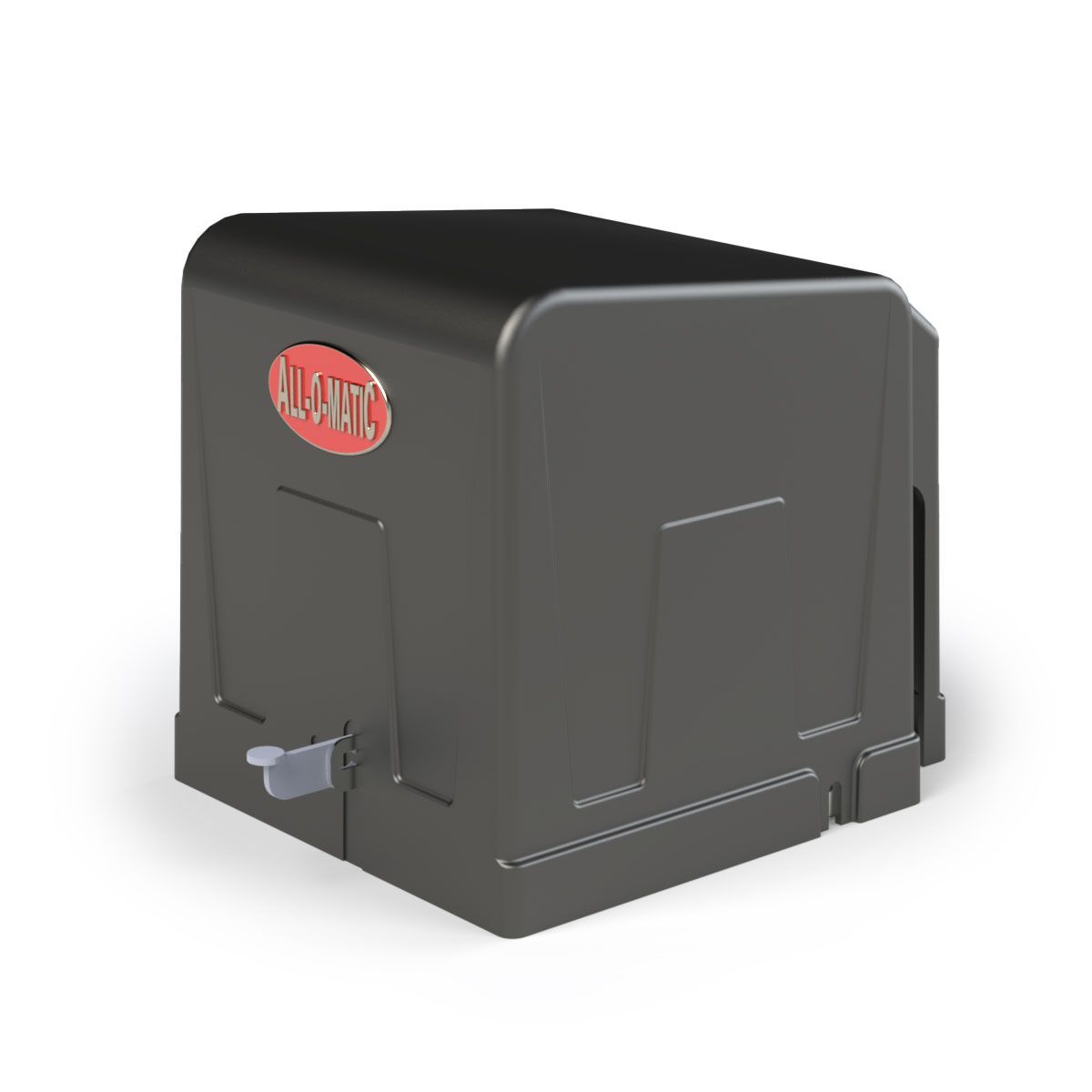

The All-O-Matic SL-90DC gate operator is equipped with a standard mechanical foot pedal release and gearbox designed to handle high capacity gates. While compact in size, the SL-90DC can handle gates up to 1600lbs. and up to 50ft. long.

The SL-90DC comes with control board designed to offer an array of functions, including programmable relay and leaf delay, solar power adaptability, a slow start/stop program, and more! The integrated battery backup ensures continued operation for up to two weeks (depending on battery life and conditions) in the event of a power loss.

Brushless DC motors are designed to be maintenance free, while still delivering a smooth and quiet performance.


7-Year Residential Warranty, 5-Year Commercial Warranty.

Add to Cart

  • SPECIFICATIONS

    Max. gate length: 50ft. Max. gate weight: 1600lbs.

    24VDC brushless 1/2hp motor

    Solar compatible

    2 7Ah 12VDC batteries for power backup; 150 cycles on 1000lbs. gate when running on battery backup

    Runs on 115/230 VAC single phase or 24VDC solar power

    Operation temperature -40 ° F - 160 ° F

    Gearbox 20:1 with internal disconnect

    LCD display with on-board diagnostics

    Auto-close timer

    Digitally adjustable obstruction sensor


  • HOW TO USE

  • DETAILS

    Continuous duty cycle

    Partial open option

    USB port to extract diagnostics

    Programmable auxiliary inputs

    All-O-Matic Red Eye photo eye included

    Built-in cycle counter

    Mechanical foot pedal for emergency release

    7-year Residential warranty or 5-year Commercial warranty


    Shipping Weight: 95lbs.

    Length: 18.5"

    Width: 15.5"

    Height: 16"
