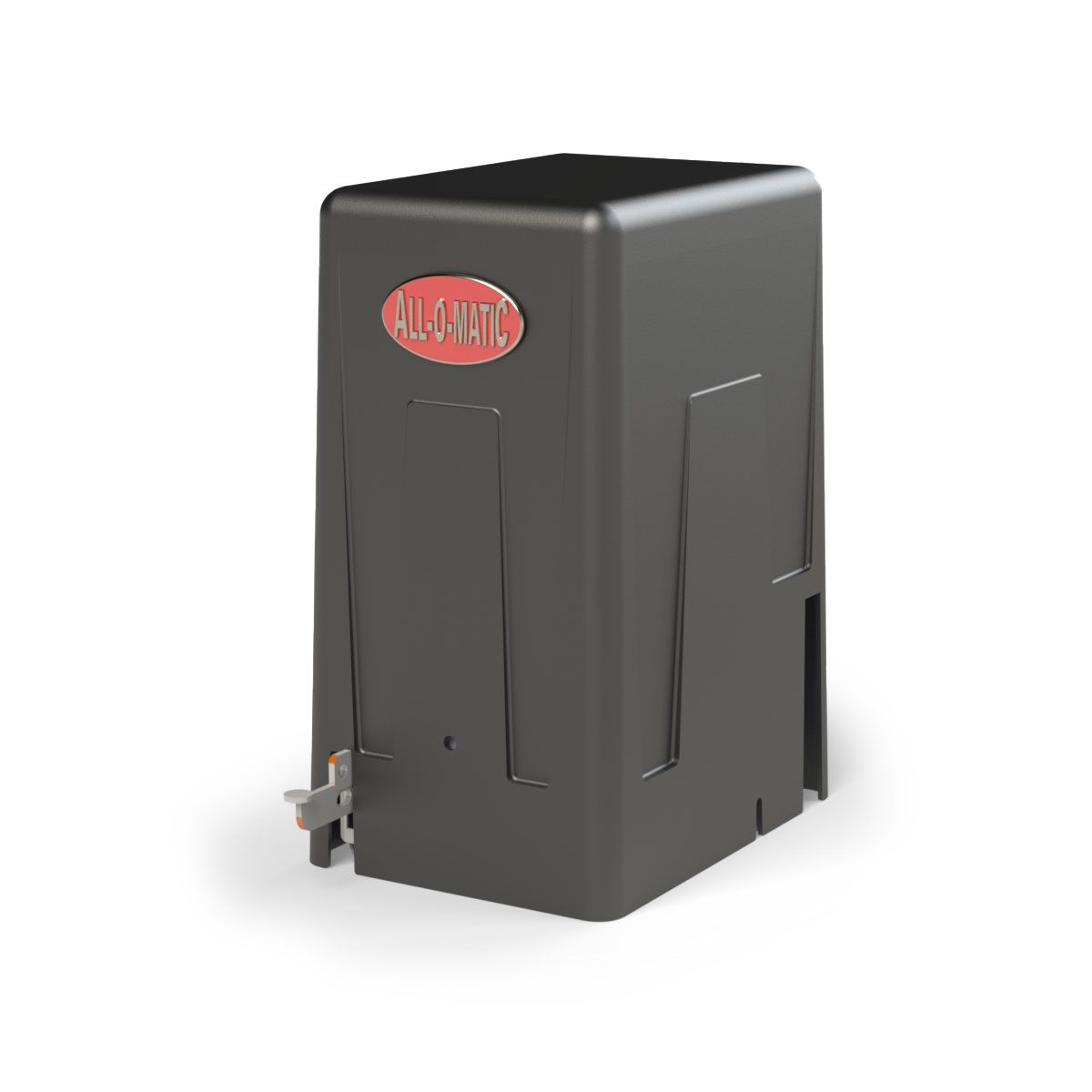

AOM SLDC100
$2,309.99
Designed for reliable, continuous, and quiet performance, the All-O-Matic SLDC100 is equipped with a built-in loop detector rack and the ability to run all accessories on battery power. Solar compatible, the DC features a control board with a variety of features including leaf delay, slow stop/start, and a programmable relay, among others! The DC runs with a brushless motor for a smooth and quiet performance without sacrificing power and reliability.
Comes equipped with an emergency foot pedal release.
5-year limited warranty for commercial applications, 7-year limited warranty for residential applications.
SPECIFICATIONS
Max. gate length: 50ft. Max. gate weight: 2000lbs.
24VDC brushless 1/2hp motor
Runs 115/230 single phase or 24VDC solar panel
Continuous duty cycle
2 7Ah 12VDC batteries for backup power; runs 80 cycles on a 1000lbs. gate on battery backup
Auto close timer
Built-in obstruction sensor
Partial open option
Cycle counter
Programmable auxiliary inputs
7-year Residential warranty and 5-year Commercial warranty
HOW TO USE
DETAILS
LCD display with on-board diagnostics
Auto-close timer
Obstruction sensing digital adjustments
Integrated wireless Primary and Secondary
Option for a partial open
Programmable auxiliar inputs
USB port to extract diagnostics and firmware updates
Built-in voltmeter
Red eye sensor included for entrapment protection
